Cycle Wars: The Rise of Otto Cycles
DOFPro Team
Carnot (IE, IT, IE, IT) Review
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy

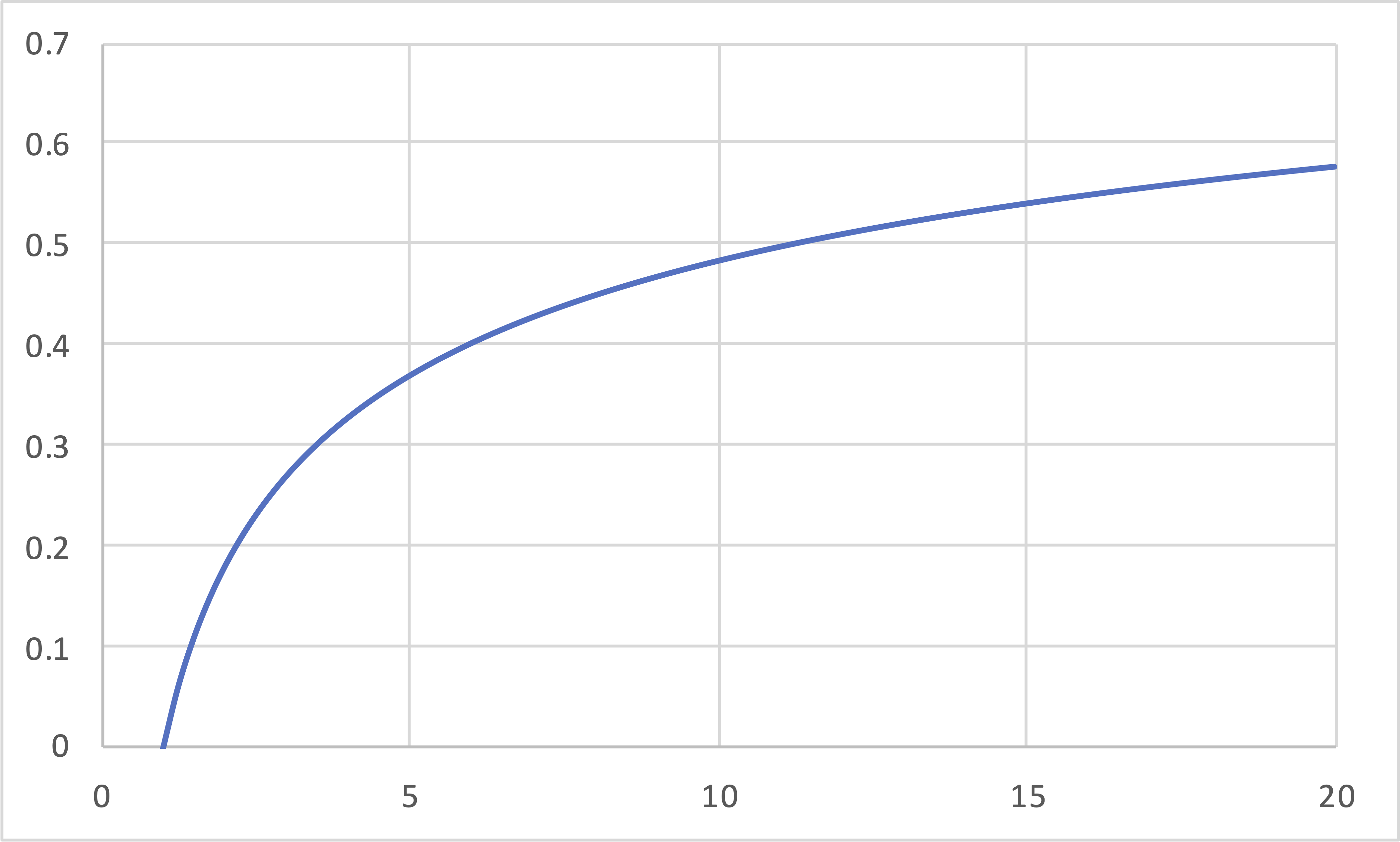

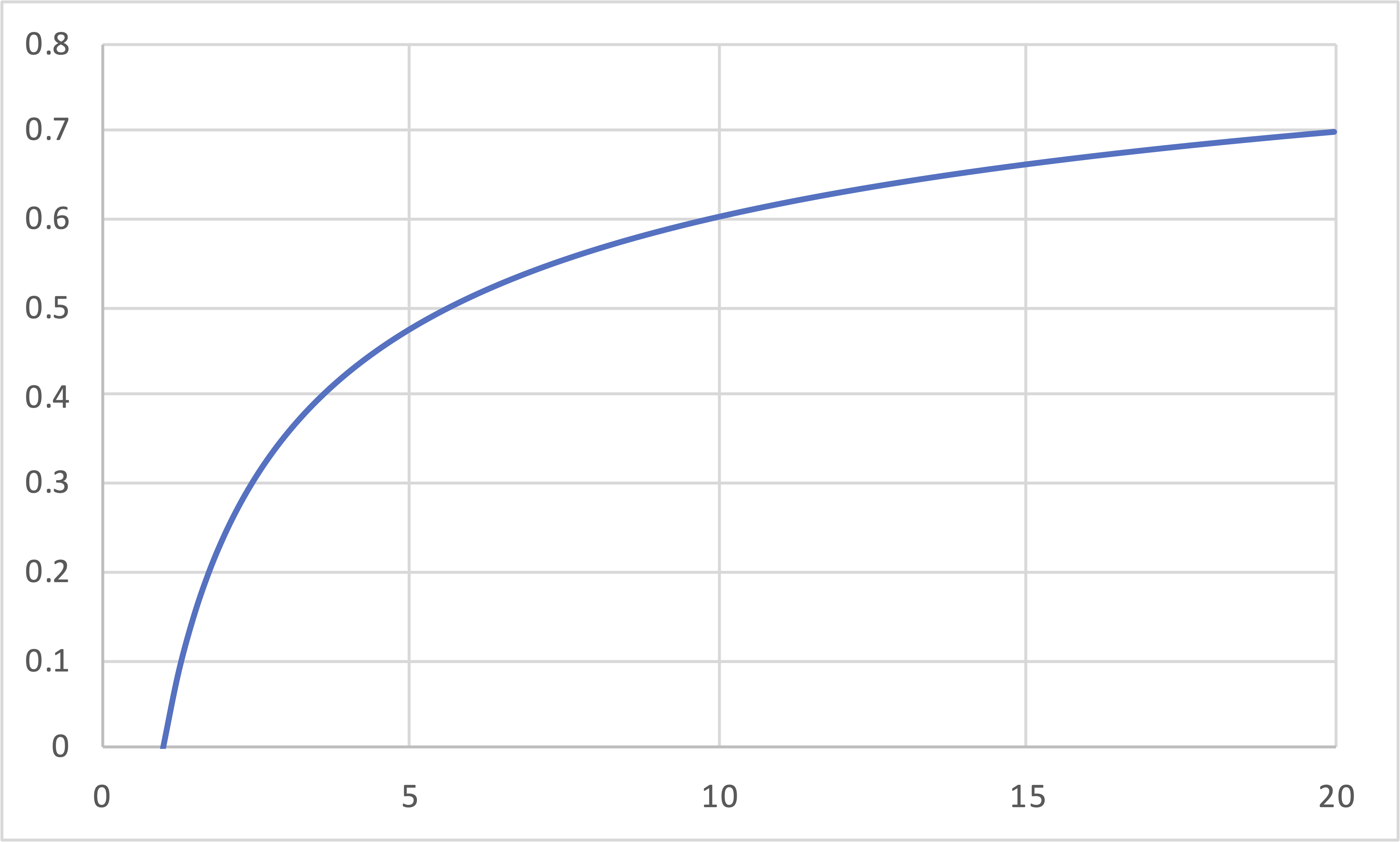

\[\eta\]
\[r\]
\[\eta\]
\[r_P\]

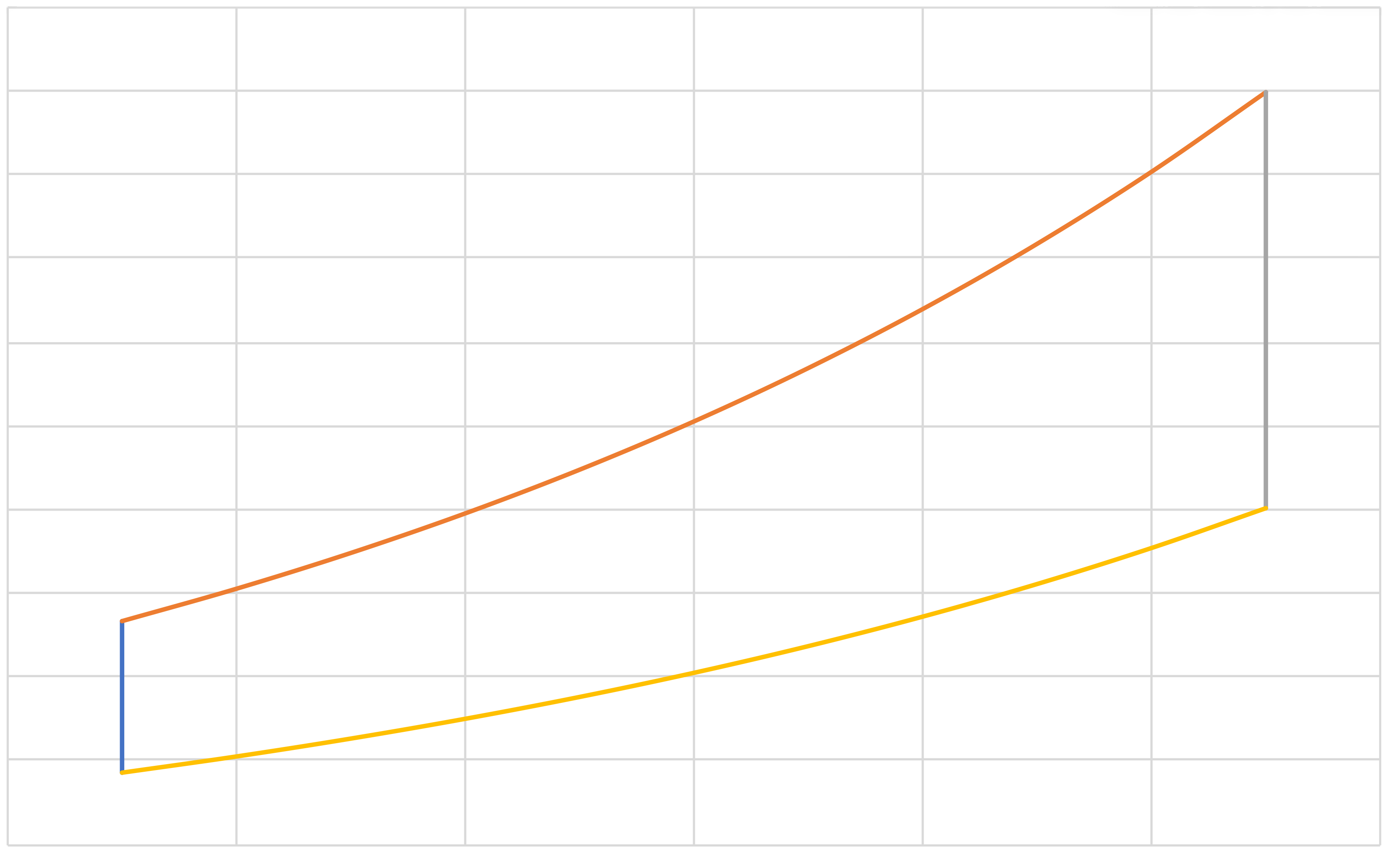

Otto (IE, IC, IE, IC)
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
\[\eta=\frac{|Q_\mathrm{hot}|-|Q_\mathrm{cold}|}{|Q_\mathrm{hot}|}=1-\frac{|Q_\mathrm{cold}|}{|Q_\mathrm{hot}|}\]
\[Q_\mathrm{hot}=C_v\left(T_a-T_d\right)\]
\[Q_\mathrm{cold}=C_v\left(T_c-T_b\right)\]
\[\eta=1-\frac{T_b-T_c}{T_a-T_d}=1-\frac{T_c}{T_d}=1-r^{(1-\gamma)}\]
\[W_{\rm{net}}=-\left(Q_\mathrm{hot}+Q_\mathrm{cold}\right)=C_v\left[\left(T_b+T_d\right)-\left(T_a+T_c\right)\right]\]
Otto (IE, IC, IE, IC)(cont.)
\[\eta\]
\[r\]
\[\eta = 1 - \frac{T_\mathrm{c}}{T_\mathrm{d}} = 1 - r^{(1-\gamma)} \]

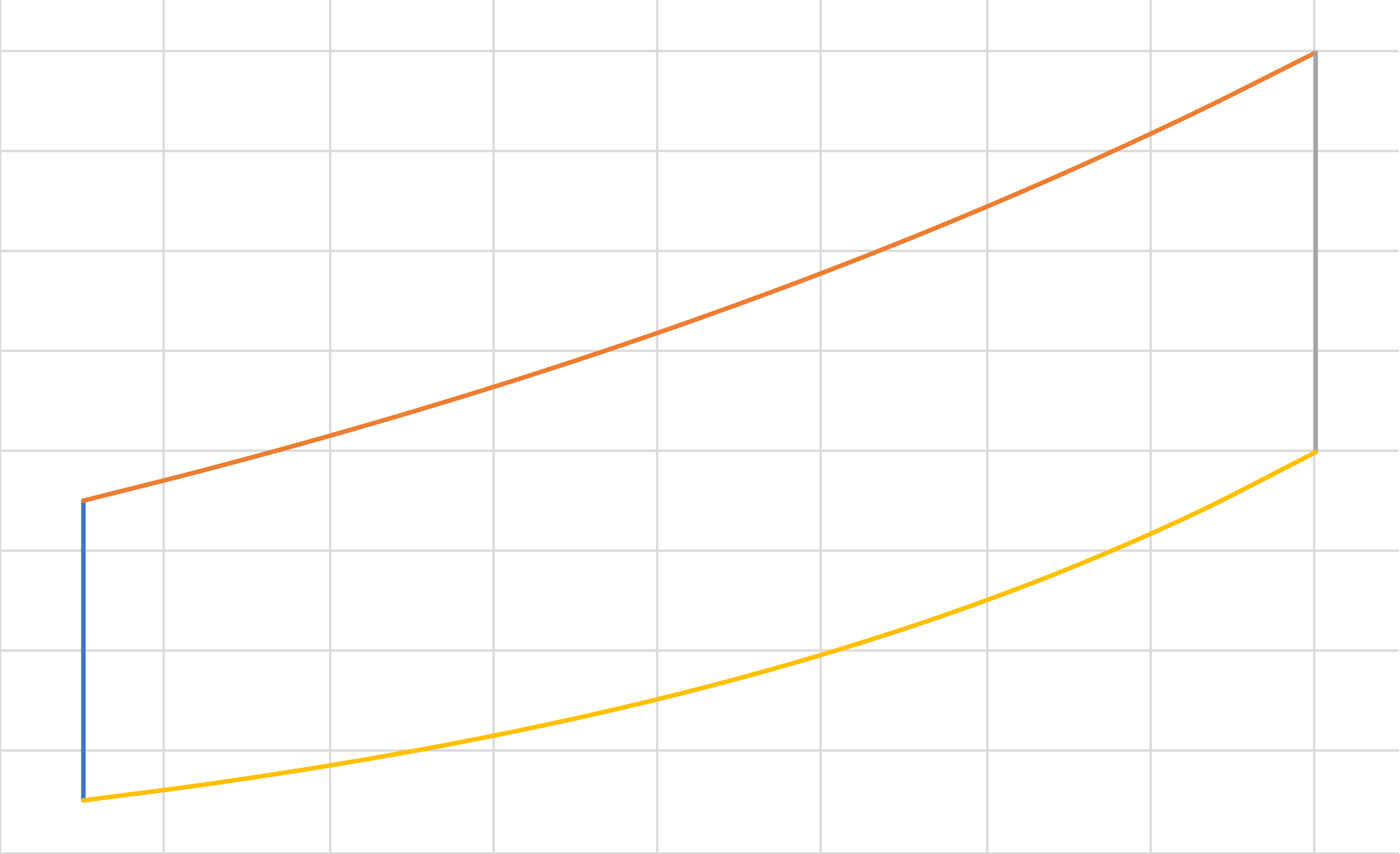

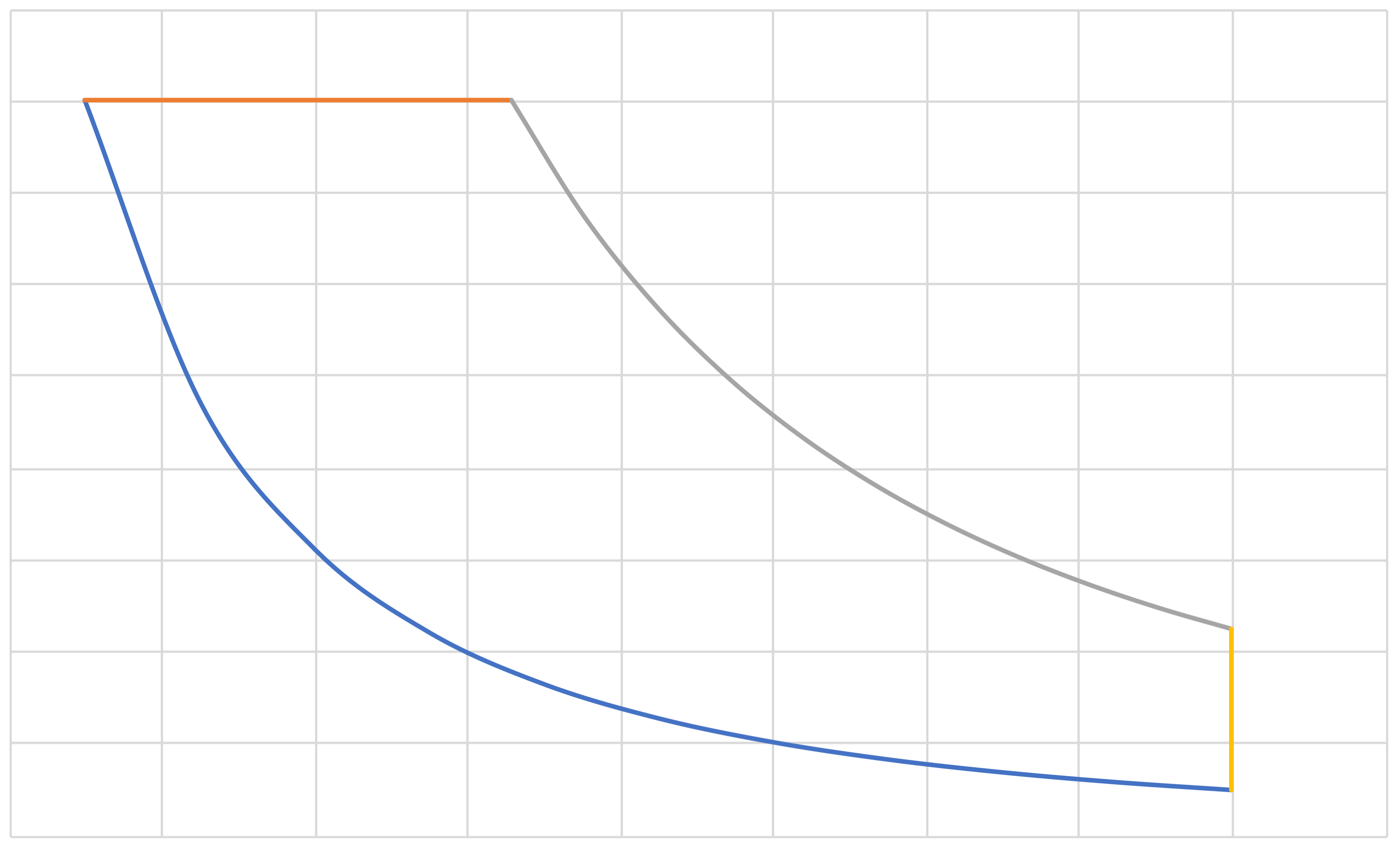

Diesel (IE, IB, IE, IC)
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
\[\eta=1+\frac{Q_\mathrm{cold}}{Q_\mathrm{hot}}=1+\frac{C_v\left(T_c-T_b\right)}{C_p\left(T_a-T_d\right)}\]
\[=1+\frac{1}{\gamma}\frac{\left(T_b-T_c\right)}{\left(T_a-T_d\right)}\]
\[Q_\mathrm{hot}=Q_2 = C_p\left(T_a-T_d\right)\]
\[Q_\mathrm{cold}=Q_4 = C_p\left(T_c-T_b\right)\]
\[r_e \equiv \frac{V_b}{V_a}\]
\[r \equiv \frac{V_c}{V_d}\]
\[W_{\rm{net}}=-\left(Q_\mathrm{hot}+Q_\mathrm{cold}\right)=C_p\left[\left(T_d-T_a\right)+\left(T_b-T_c\right)\right]\]

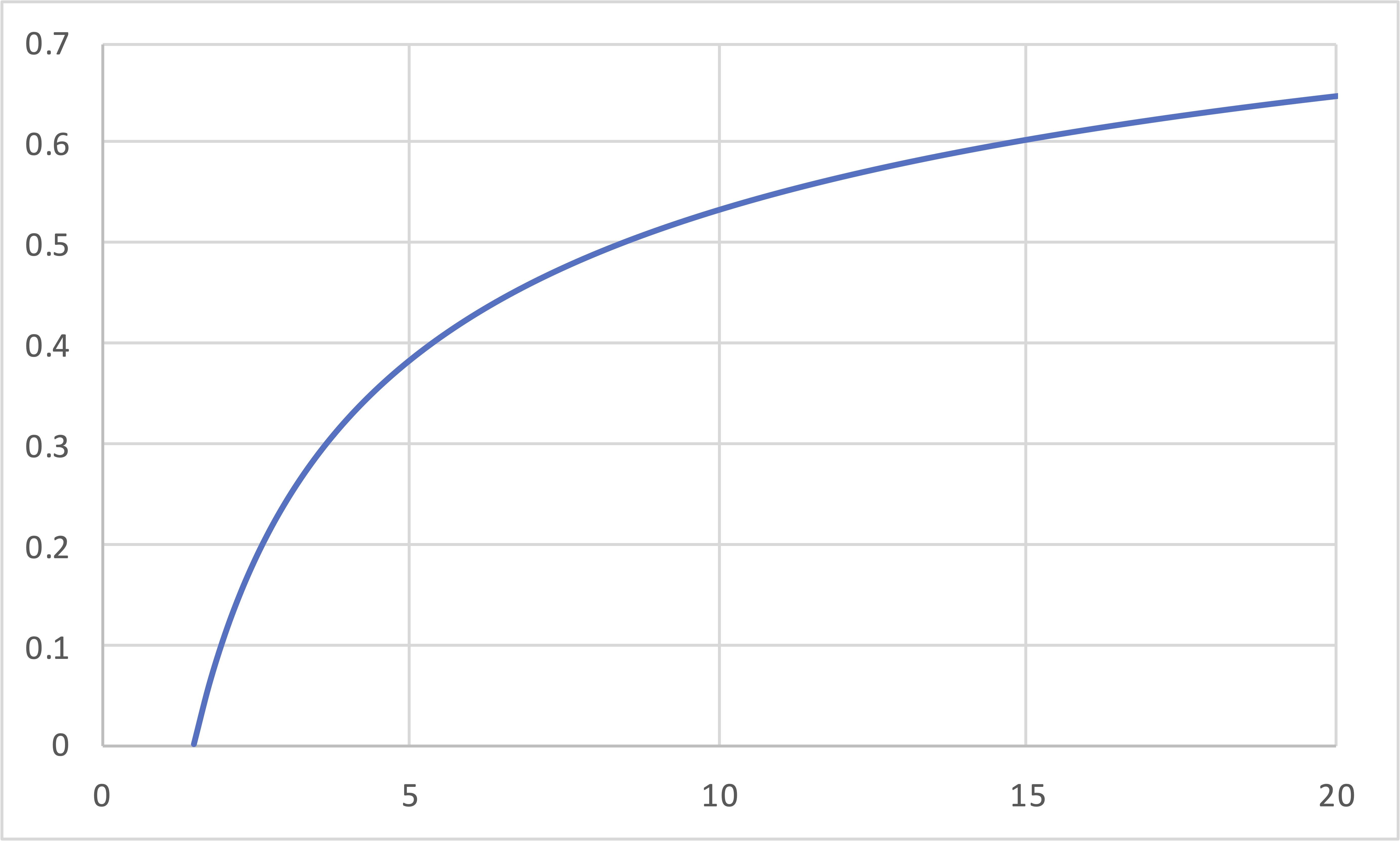

Diesel (IE, IB, IE, IC)(cont.)
\[\eta\]
\[r\]
\[\eta = 1 - \frac{1}{\gamma}\left[\frac{\left(\frac{1}{r_e}\right)^{\gamma-1}-\left(\frac{r_e}{r}\right)\left(\frac{1}{r}\right)^{\gamma-1}}{1-\frac{r_e}{r}}\right]\]
\[= 1 - \frac{1}{\gamma}\left[\frac{\left(\frac{1}{r_e}\right)^{\gamma-1}-\left(\frac{1}{r}\right)^\gamma}{\frac{1}{r_e}-\frac{1}{r}}\right]\]
\[r \equiv \frac{V_c}{V_d}\]
\[r_e \equiv \frac{V_b}{V_a}\]
Graph is for \(r_e = 0.5 r\)

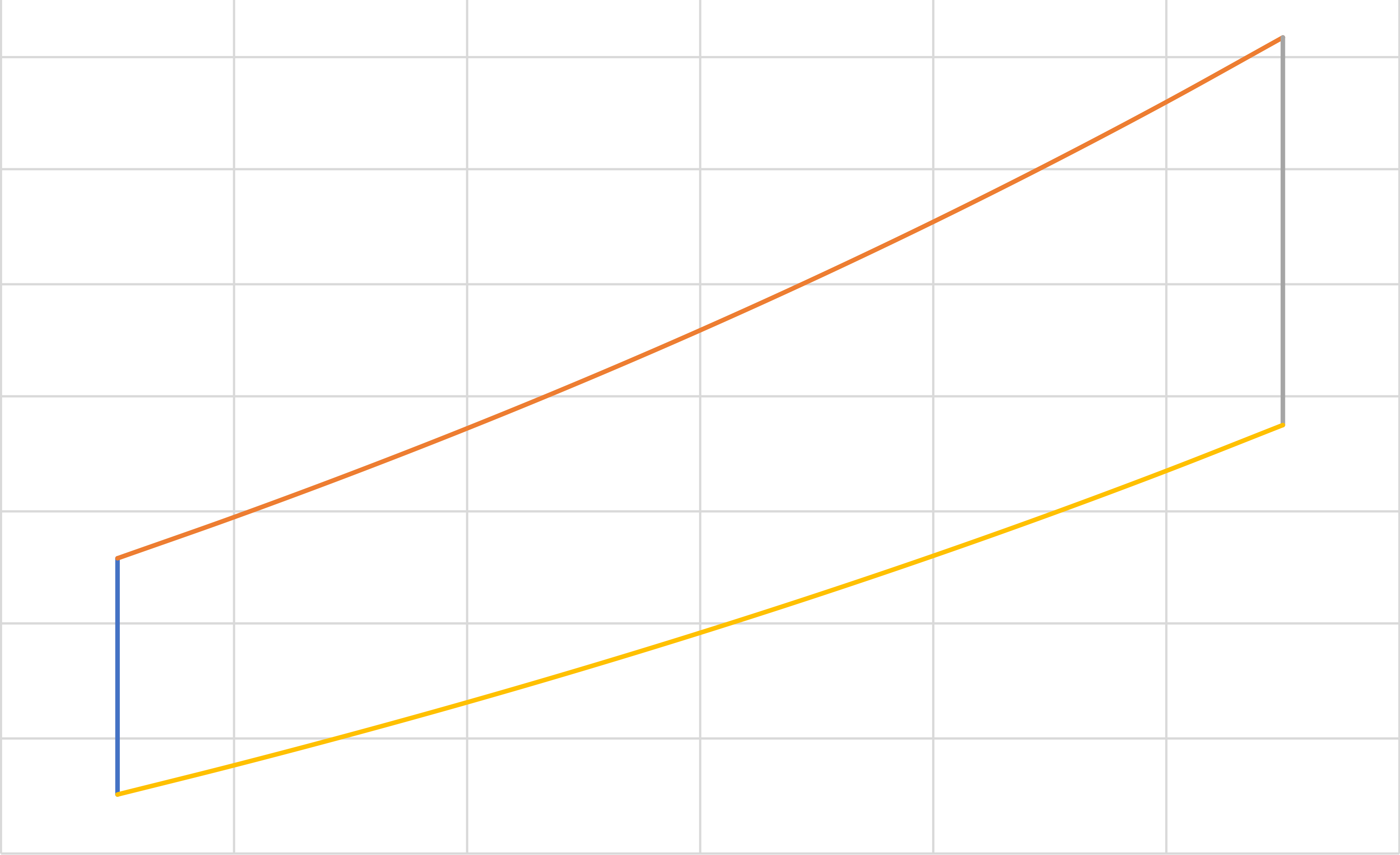

Brayton (IE, IB, IE, IB)
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
\[\eta=1-\frac{|Q_\mathrm{cold}|}{|Q_\mathrm{hot}|}=1+\frac{\left(T_d-T_a\right)}{\left(T_c-T_b\right)}\]
\[=1-\frac{T_a}{T_b}=1-r_P^{\frac{1-\gamma}{\gamma}}\]
\[Q_\mathrm{hot}=Q_2 = C_p\left(T_c-T_b\right)\]
\[Q_\mathrm{cold}=Q_4 = C_p\left(T_d-T_a\right)\]
\[W_{\rm{net}}=-\left(Q_\mathrm{hot}+Q_\mathrm{cold}\right)=C_p\left[\left(T_b+T_d\right)-\left(T_a+T_c\right)\right]\]
Brayton (IE, IB, IE, IB)(cont.)
\[\eta\]
\[r\]
\[\eta = 1 - r_P^{\left(\frac{1-\gamma}{\gamma}\right)}\]

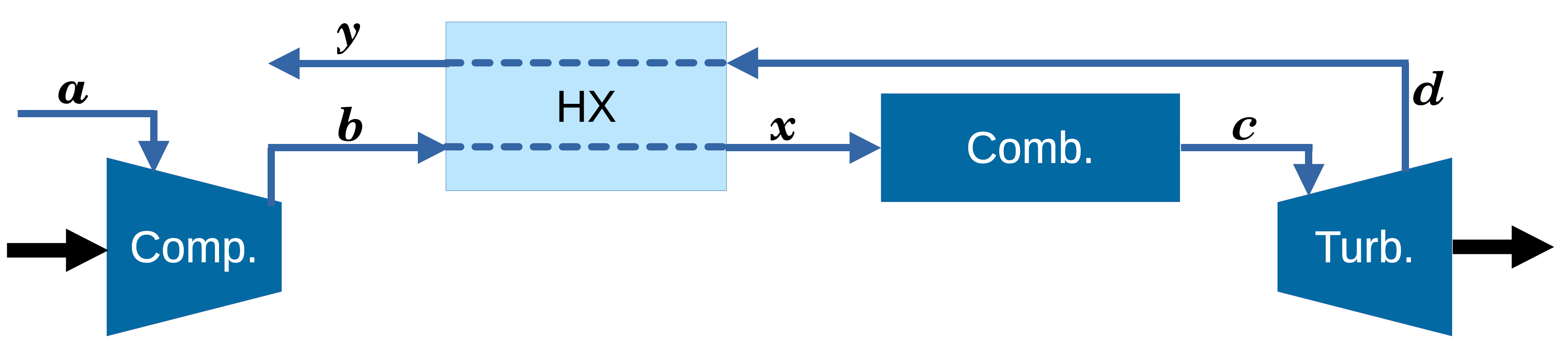

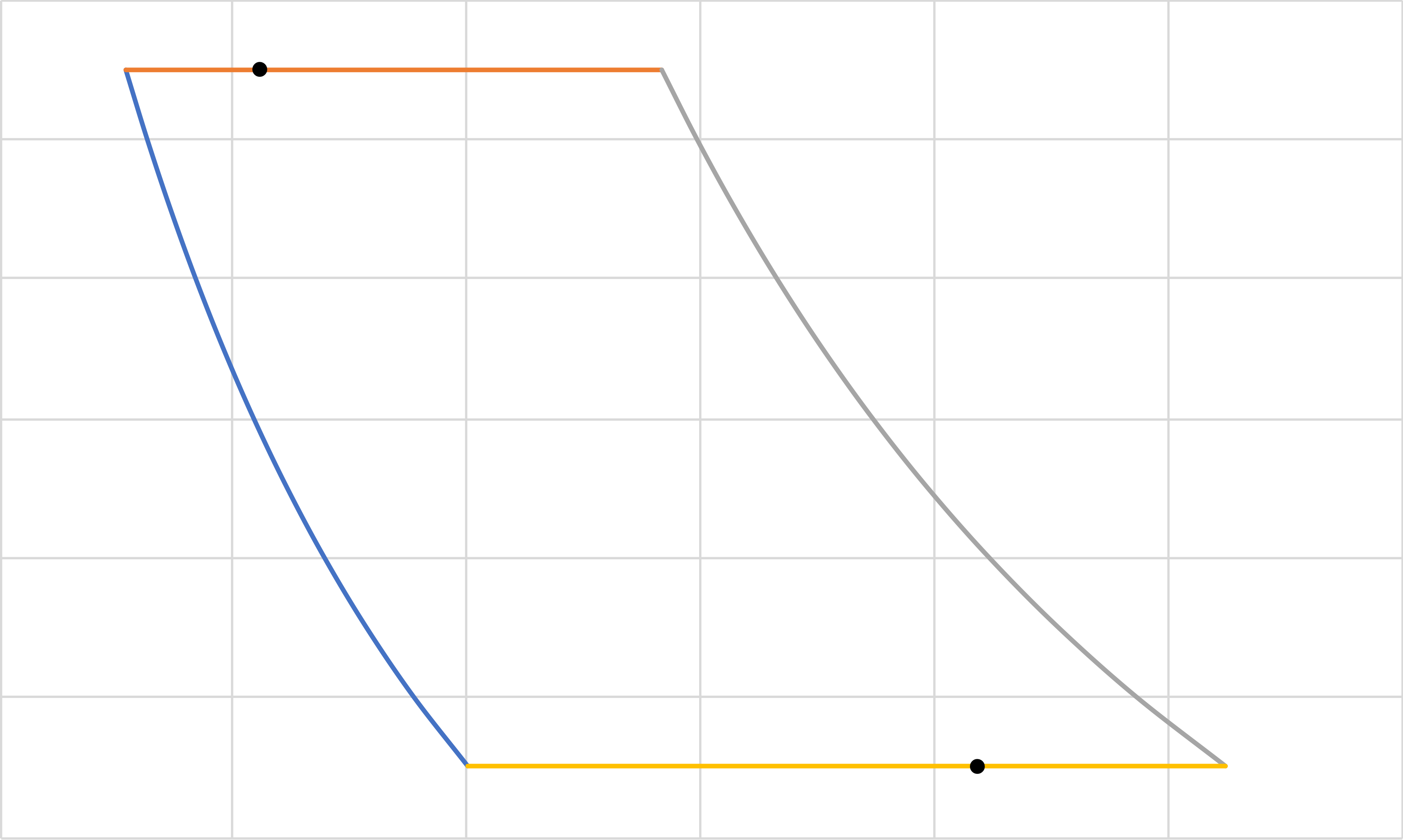

Brayton With Regenerator (IE, IB, IE, IB)
\(a\)
\(b\)
\(c\)
\(d\)
\(x\)
\(y\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(x\)
\(y\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
\[W_{s_\mathrm{in}}\]
\[W_{s_\mathrm{out}}\]
\[W_{s_\mathrm{in}}\]
\[W_{s_\mathrm{out}}\]
\[Q_\mathrm{hot}=C_p\left(T_c-T_x\right)\]
\[W_{\mathrm{net}}=W_{\mathrm{turb}}+W_{\mathrm{comp}}\]
\[-W_{\mathrm{turb}}=- \Delta H = C_p\left(T_c-T_d\right)\]
With an ideal regenerator, \(T_d = T_x\).
\[Q_\mathrm{hot}=-W_{\mathrm{turb}}\]
\[\eta=\frac{|W_{\mathrm{turb}}+W_{\mathrm{comp}}|}{Q_\mathrm{hot}}=1-\frac{|W_{\mathrm{comp}}|}{|W_{\mathrm{turb}}|}\]
\[\eta=1+\frac{T_b-T_a}{T_c-T_d}=1-\frac{T_a}{T_c}\left(\frac{P_b}{P_a}\right)^{\frac{\gamma-1}{\gamma}}\]
\(\eta\)
\(r_p\)
\(T_a/T_c = 1/3\)
\(T_a/T_c = 1/4\)
\(T_a/T_c = 1/5\)

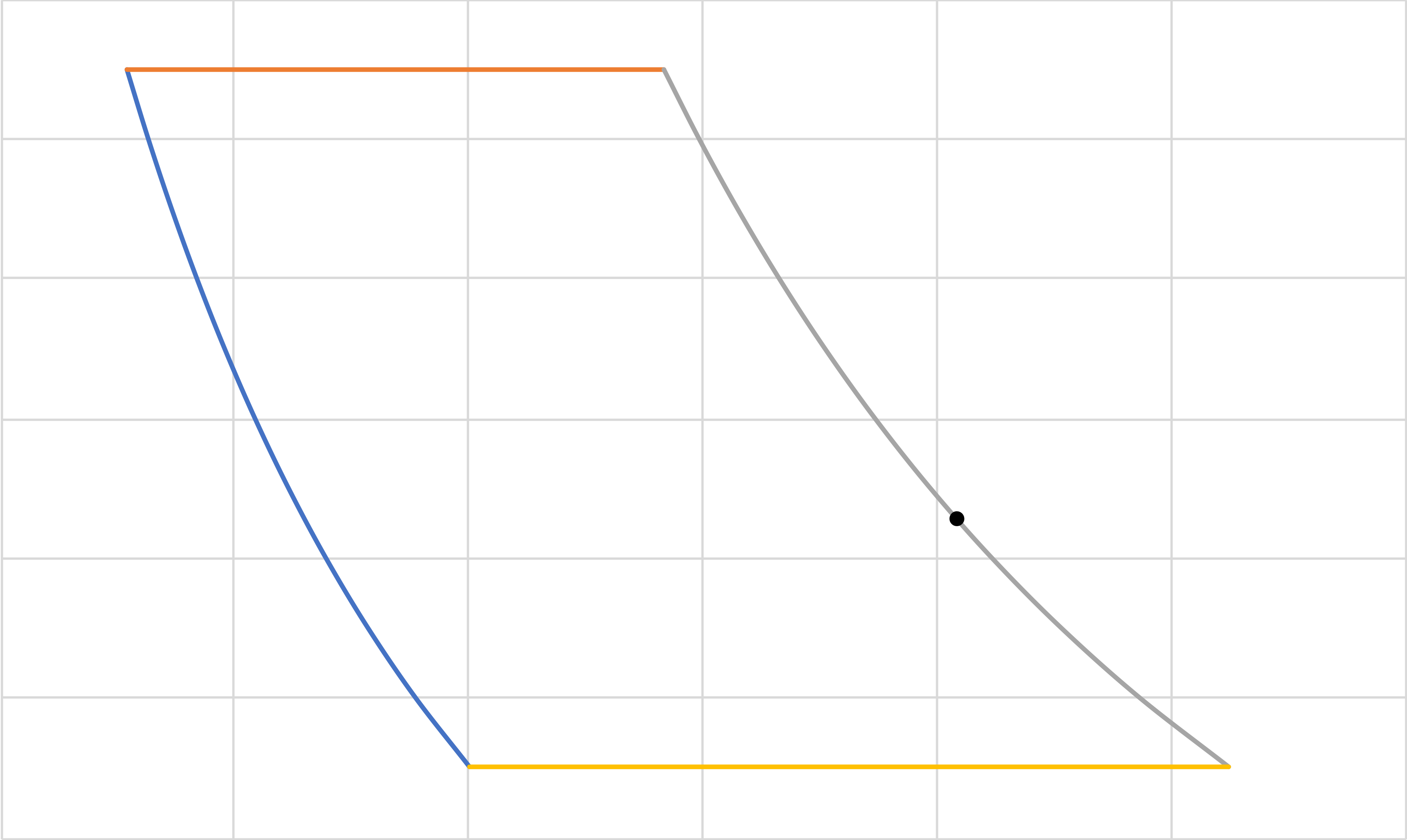

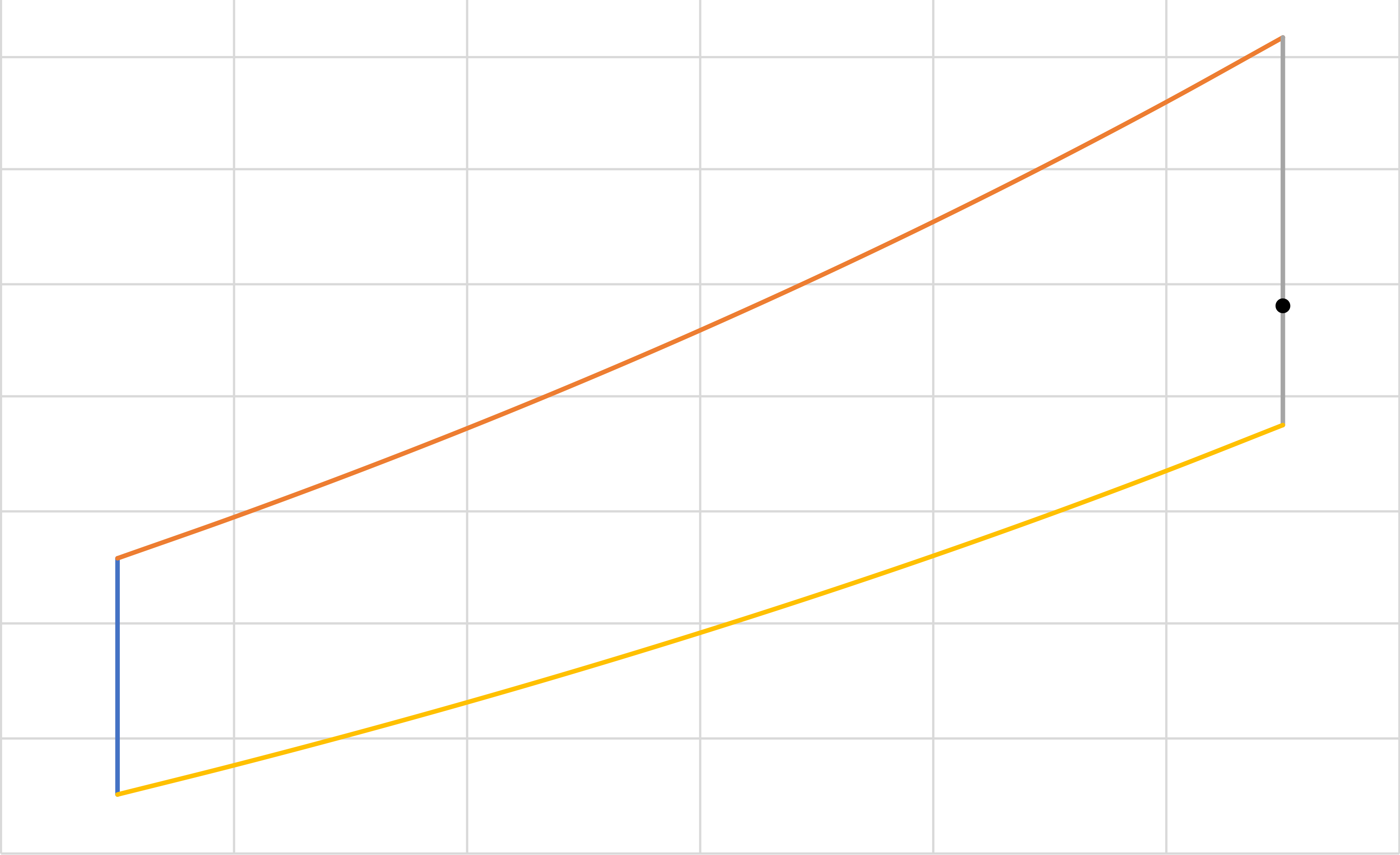

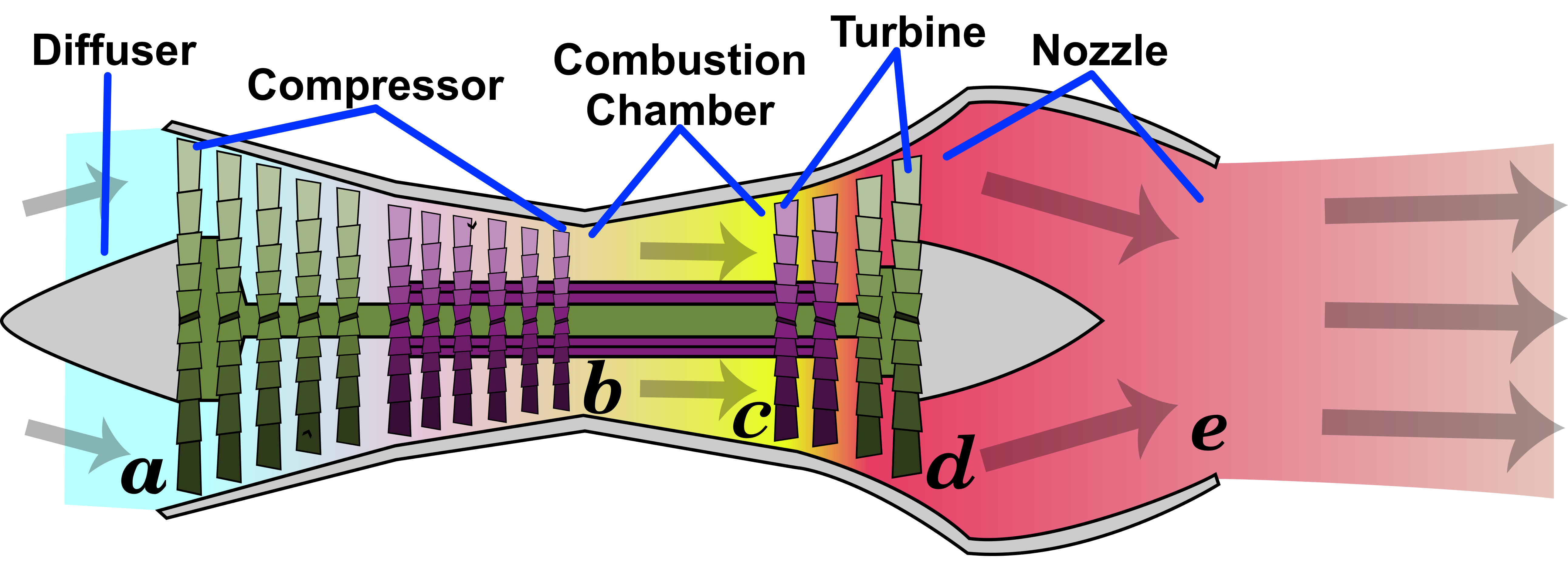

Turbojet (IE, IB, IE, IE IB)
\(a\)
\(b\)
\(c\)
\(d\)
\(e\)
\(1\)
\(2\)
\(3\)
\(4\)
\((5)\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(e\)
\(1\)
\(2\)
\(3\)
\(4\)
\((5)\)
Temperature
Entropy
Raminagrobis, CC BY 4.0, via Wikimedia Commons
In ideal or actual cycle
\(\ \ \ \ |W_1|=|W_3|\) Just enough to drive
\(\ \ \ \ W_1=C_p\left(T_b-T_a\right)\)
\(\ \ \ \ Q_2=C_p\left(T_c-T_b\right)\)
\(\ \ \ \ W_3=C_p\left(T_d-T_c\right)\)
Turbojet (IE, IB, IE, IE IB)(cont.)
Raminagrobis, CC BY 4.0, via Wikimedia Commons
\(\ \ \implies C_p\left(T_b-T_a\right)=C_p\left(T_c-T_d\right)\)
\(\ \ \ \ T_d=T_c+\left(T_a-T_b\right)\)
In the nozzle (Step 4)
\(\ \ \ \ \Delta \hat{H} + \frac{\Delta (u^2)}{2}=0\)
\(\ \ \ \ d\hat{H}+udu=0\)
\(\ \ \ \ d\hat{H} = Td\hat{S} +\hat{V}dP\)
For isentropic \((\Delta S = 0)\)
\(\ \ \ \ \hat{V}dP+udu=0\)
\[\ \ \ \ \int_{u_d}^{u_e} udu=- \int_{\hat{V}_d}^{\hat{V}_e} \hat{V}dP\]
\[\text{ also }P\hat{V}^{\gamma}=\text{const.}\]
\[u_e^2-u_d^2=\frac{2\gamma P_d \hat{V}_d\ (\text{or }RT_d)}{\gamma-1}\left[1-\left(\frac{P_e}{P_d}\right)^{\frac{\gamma-1}{\gamma}}\right]\]
\[\frac{T_e}{T_d}=\left(\frac{\hat{V}_d}{\hat{V}_e}\right)^{\gamma-1}=\left(\frac{P_e}{P_d}\right)^{\frac{\gamma-1}{\gamma}}\]

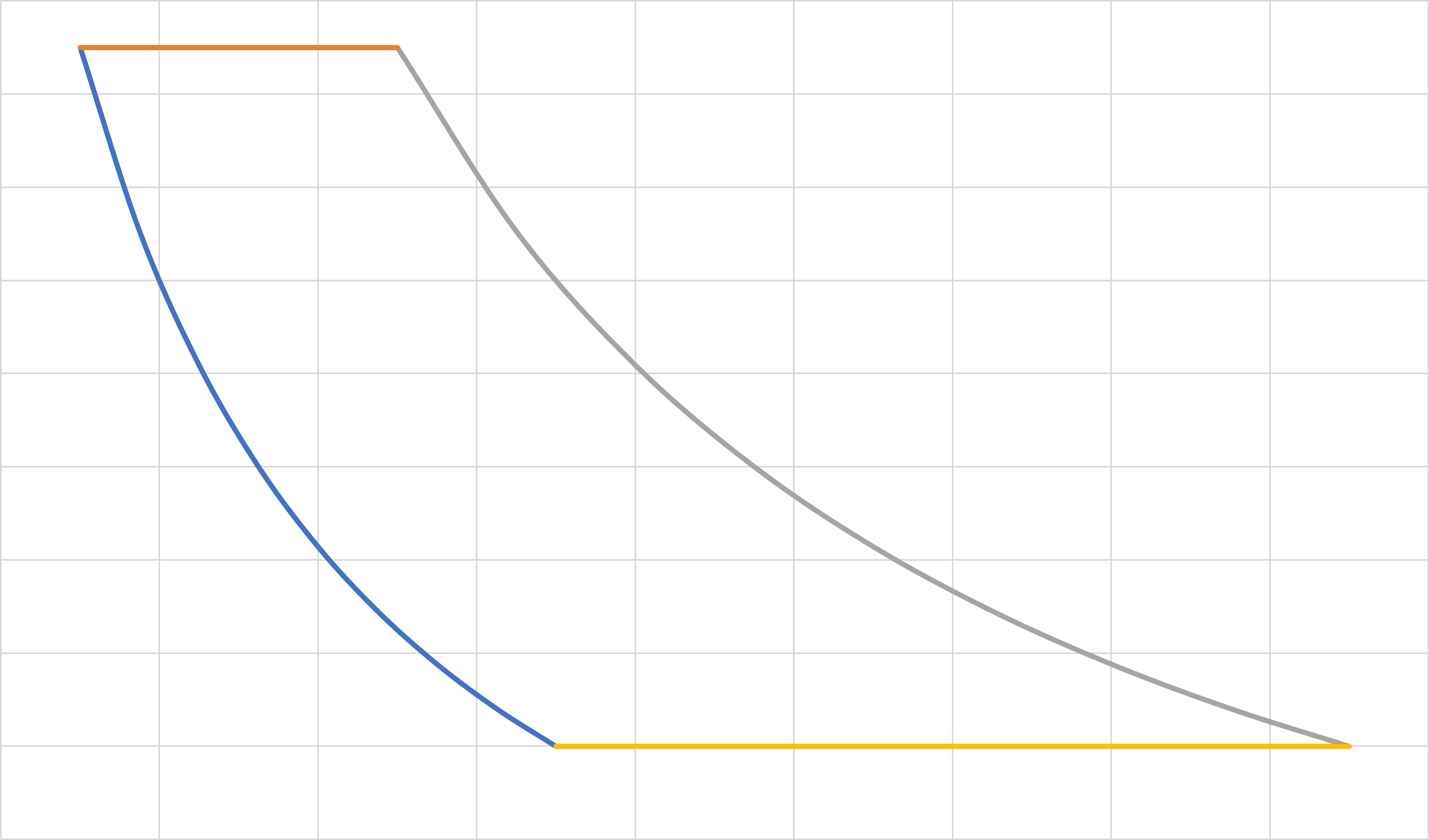

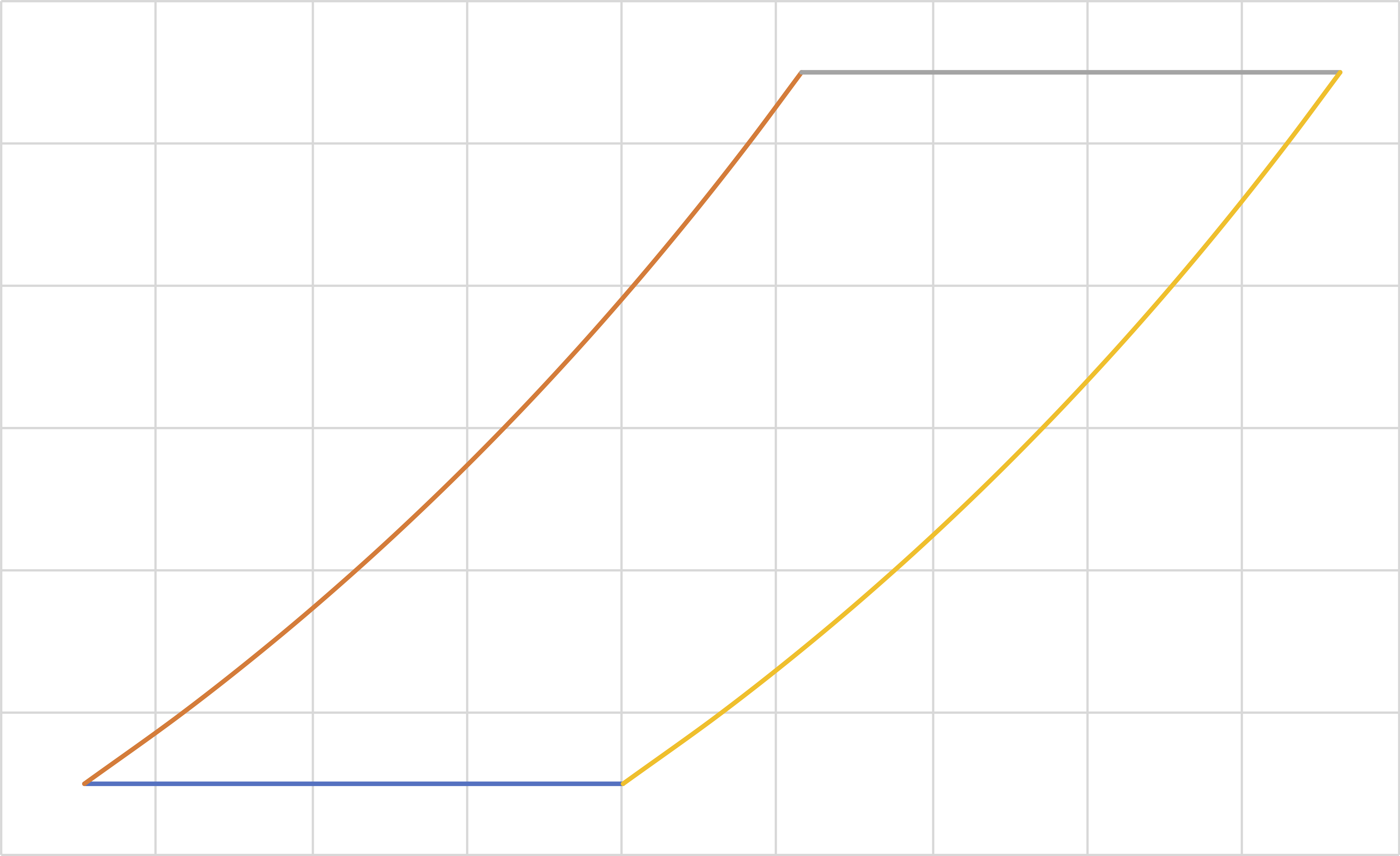

Ericsson (IT, IB, IT, IB)
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
\[Q_1=-W_1=RT_a \ln \frac{P_a}{P_b}\]
\[Q_3=-W_3=RT_c \ln \frac{P_c}{P_d}\]
\[Q_2=\Delta \hat{H}_2=C_p\left(T_c-T_b\right)\]
\[Q_4=\Delta \hat{H}_4=C_p\left(T_a-T_d\right)=-C_p\left(T_c-T_b\right)\]
\[W_2=- P_2 \Delta \hat{V}_2=-P_b\left(\hat{V}_c-\hat{V}_b\right)\]
\[W_4=-P_d\left(\hat{V}_a-\hat{V}_d\right)\]
Ericsson (IT, IB, IT, IB)(cont.)
After lots of algebra
\[W_{\mathrm{net}}=-R\left(T_3-T_1\right)\ln \frac{P_2}{P_4}\]
\[Q_\mathrm{hot}=C_p \left(T_1-T_3\right)+RT_3\ln \frac{P_2}{P_4}\]
\[\eta=\frac{R\left(T_3-T_1\right)\ln \frac{P_2}{P_4}}{C_p\left(T_1-T_3\right)+RT_3 \ln \frac{P_2}{P_4}}\]
Note that \(|Q_2|=|Q_4|\)

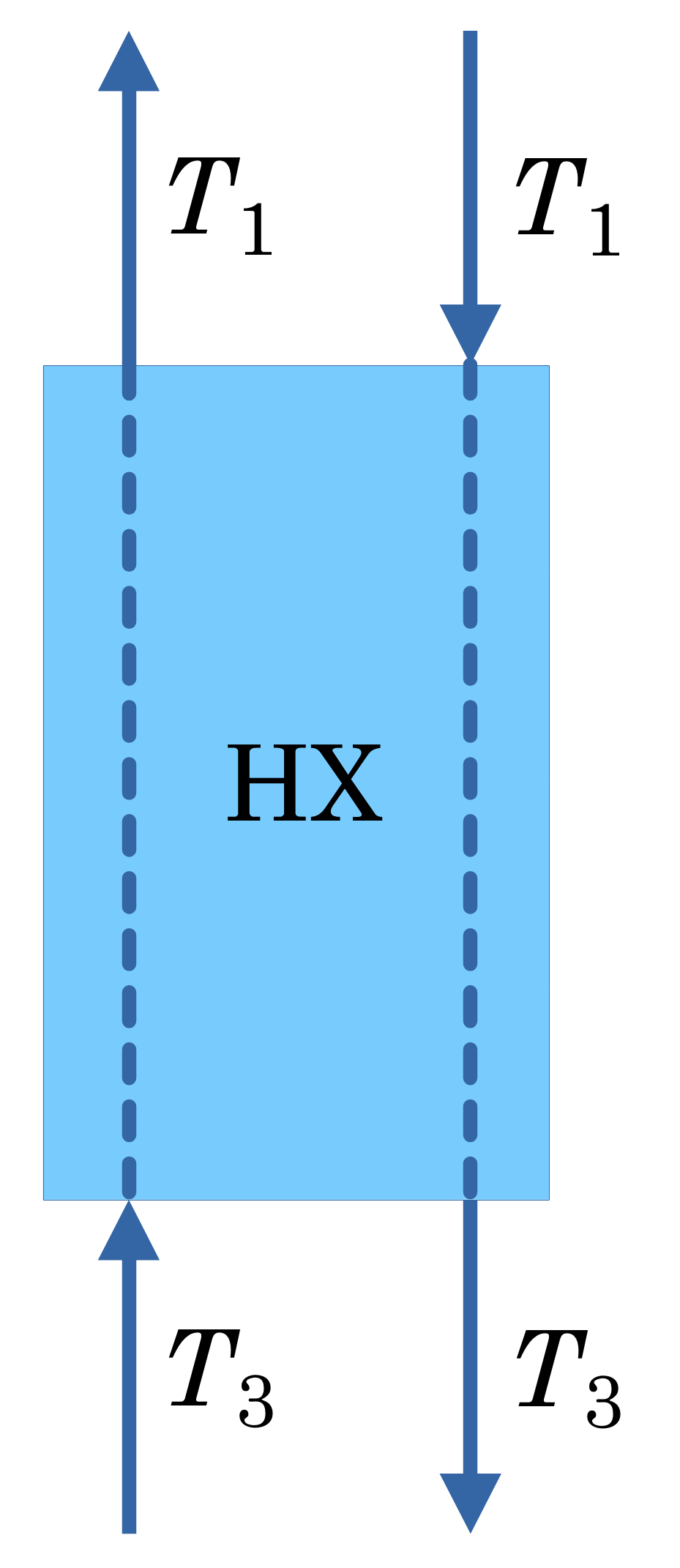

If we could use a perfect heat exchanger between Steps 2 and 4
\[\eta=\frac{R\left(T_3-T_1\right)\ln \frac{P_2}{P_4}}{RT_3 \ln \frac{P_2}{P_4}}=1-\frac{T_1}{T_3}\]

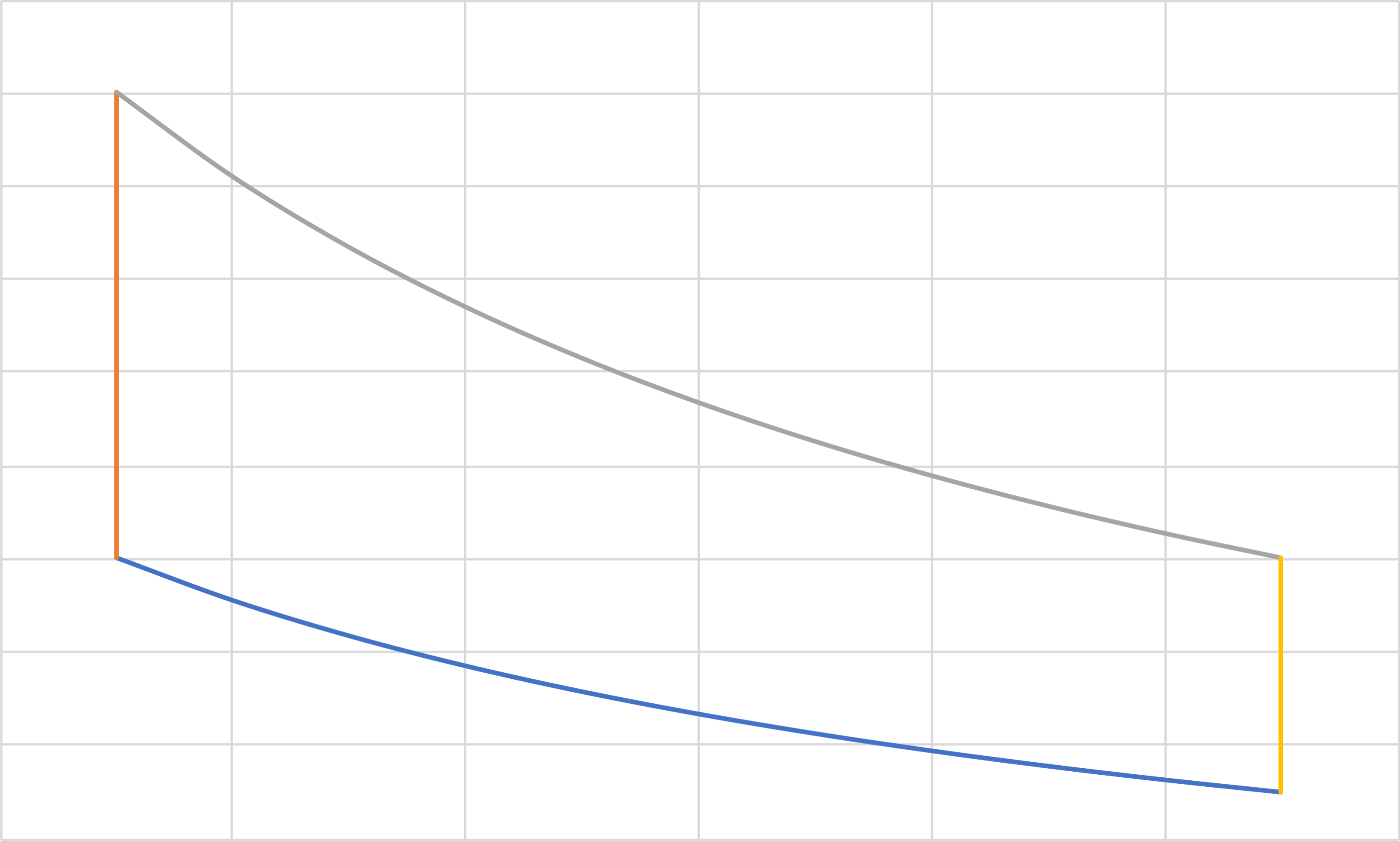

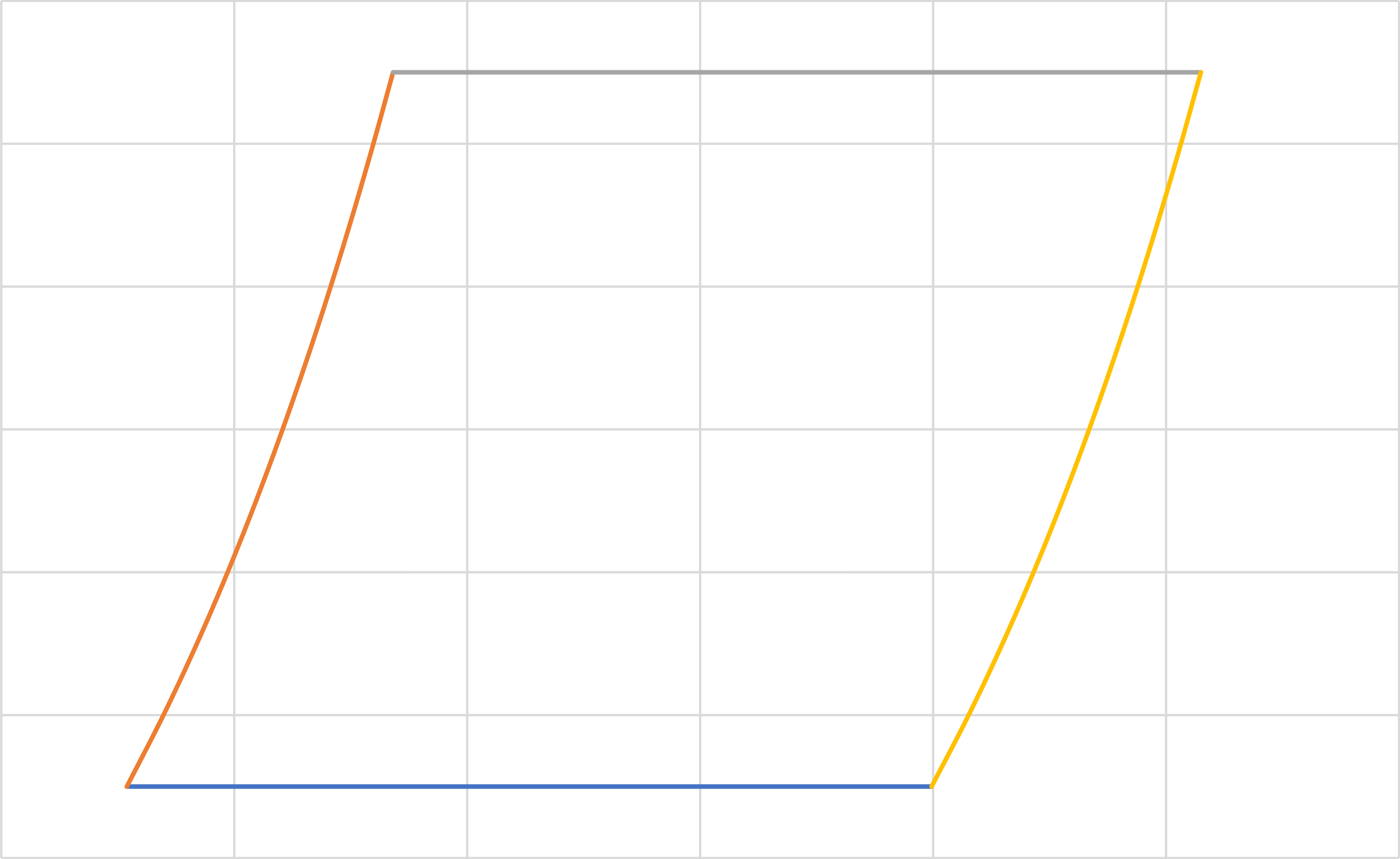

Stirling (IT, IC, IT, IC)
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Pressure
Volume
\(a\)
\(b\)
\(c\)
\(d\)
\(1\)
\(2\)
\(3\)
\(4\)
Temperature
Entropy
Similar to the Ericsson cycle
\[W_{\mathrm{net}}=-R\left(T_3-T_1\right)\ln \frac{P_b}{P_a}\]
\[Q_\mathrm{hot}=C_v \left(T_3-T_1\right)+RT_3\ln \frac{P_b}{P_a}\]
\[Q_4=C_v \left(T_1-T_3\right)\]
For perfect HX between Steps 2 and 4
\[\eta=\frac{R\left(T_3-T_1\right)\ln \frac{P_b}{P_a}}{RT_3 \ln \frac{P_b}{P_a}}=1-\frac{T_1}{T_3}\]
