The Shocking Truth About Equilibrium Stages—Are You Doing It Wrong? Part 2

DOFPro Team

The Shocking Truth About Equilibrium Stages
Are You Doing It Wrong?

Part 1 – Principles and Equations

Part 2 - Two VLE examples

Part 3 - A Liquid-Liquid Example

  • Explain the mass-balance equations for a single stage in a separator
  • Provide three examples
  • Most separation equipment has multiple stages.
  • The overall split fraction is calculated by chaining together the individual stages.
  • The full calculations require both mass balances and energy balances.
  • These videos only describe the mass balances.

Examples

  1. Distillation Column – Binary Phase Diagram – in Part 2
  2. Distillation Column – Raoult’s Law – in Part 2
  3. Liquid-Liquid Extraction – Ternary Phase Diagram – in Part 3

\(\dot{n}_{k-1}^v\)

\(\dot{n}_{k+1}^l\)

\(\dot{n}_{k}^v\)

\(\dot{n}_{k}^l\)

\(T_k,\ P_k\)

Example: Distillation Phase Diagram

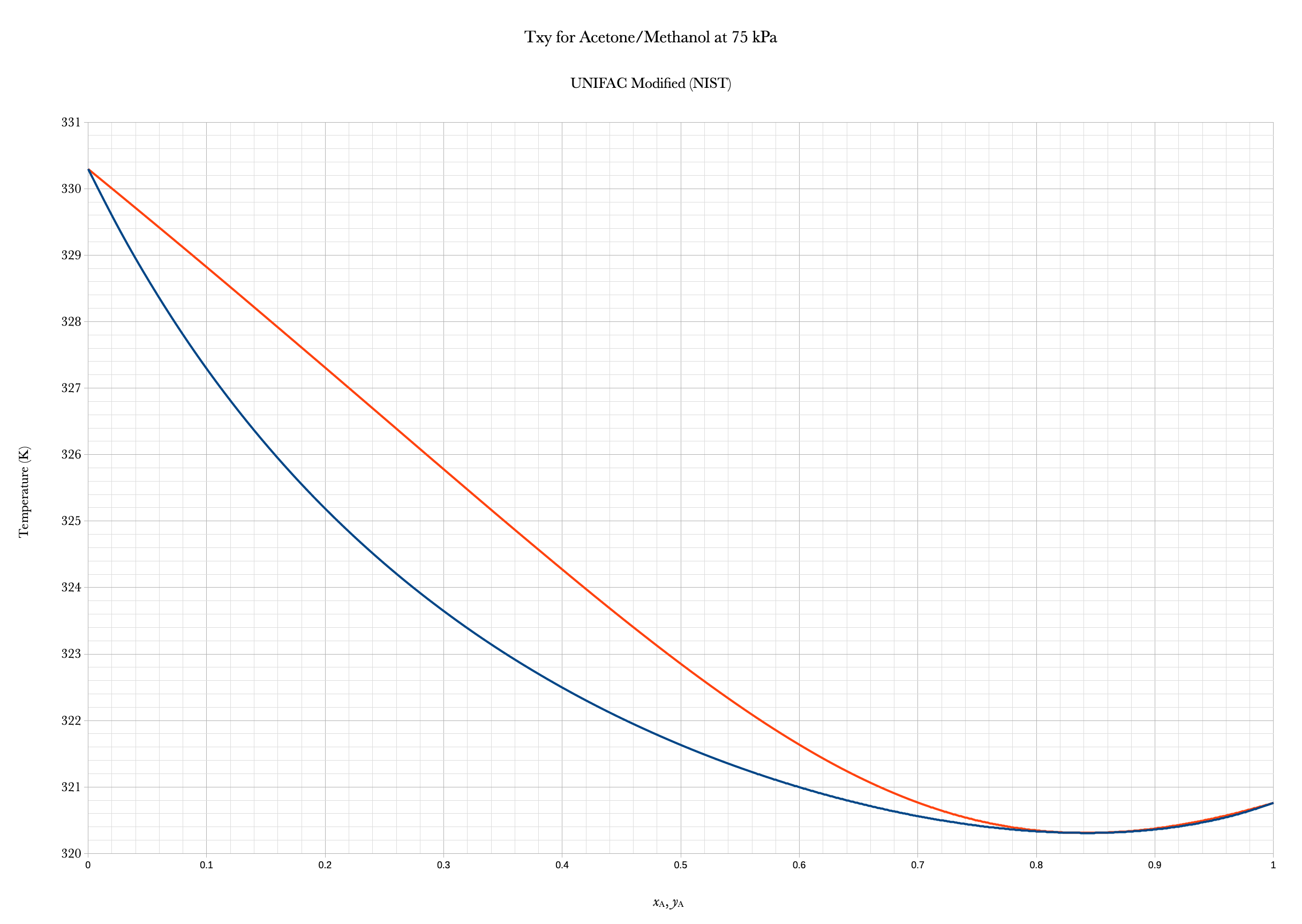

An equilibrium stage in a distillation column for separating methanol from acetone has a liquid feed of 10.0% acetone at 180 mol/min and a vapor feed of 40.0% acetone at 180 mol/min. Measurements indicate that the stage is operating at a temperature of 326 K and a pressure of 75 kPa. Calculate the compositions and flow rates of the exiting vapor and liquid streams. The phase diagram is given below.

\(\dot{n}_\mathrm{tot} = \dot{n}_{k+1}^l + \dot{n}_{k-1}^v = 180 + 180 = 360\ \mathrm{mol/min}\)

\(z_{i,k} = \dfrac{{x_{i,k+1}}\dot{n}_{k+1}^l + {y_{i,k-1}}\dot{n}_{k-1}^v}{\dot{n}_\mathrm{tot}} = \dfrac{{x_{i,k+1}} \mathbf{\cdot} 180 + {y_{i,k-1}}\mathbf{\cdot} 180}{360}\)

\((i=\mathrm{A-acetone,\ M-methanol})\)

Lever Rule

\(\mathcal{L}_k = \dfrac{y_{\mathrm{A},k}-z_{\mathrm{A},k}}{y_{\mathrm{A},k}-x_{\mathrm{A},k}}\)     \(\text{Need }y_{\mathrm{A},k},\ x_{\mathrm{A},k}\)

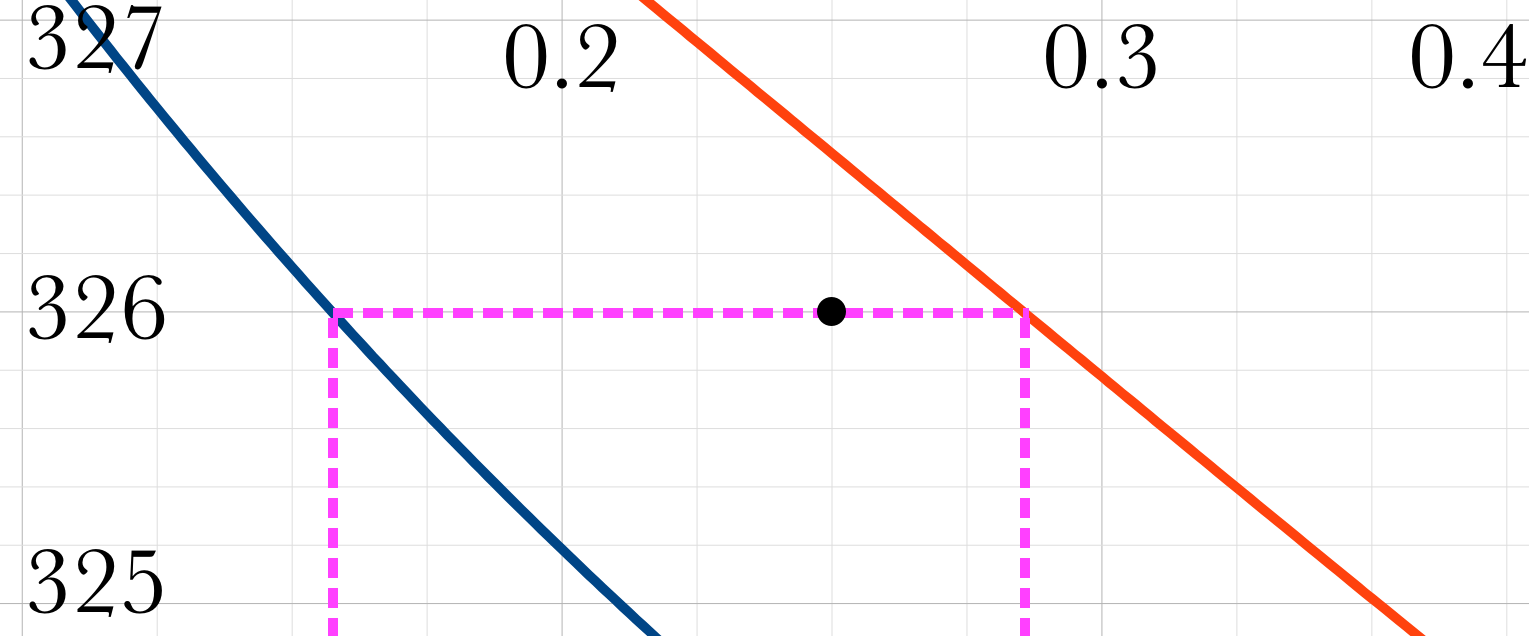

\(z_{\mathrm{A},k}=0.250\)

\(x_{\mathrm{A},k}^l=0.158\)

\(y_{\mathrm{A},k}^v=0.285\)


\(\mathcal{L}_k = \dfrac{y_{\mathrm{A},k}-z_{\mathrm{A},k}}{y_{\mathrm{A},k}-x_{\mathrm{A},k}} = \dfrac{0.285-0.25}{0.285-0.158} = 0.276\)


\(\mathcal{V}_k = 1 - \mathcal{L}_k = 1 - 0.276 = 0.724\)


\(\dot{n}_{k}^l = \mathcal{L}_k \mathbf{\cdot} \dot{n}_\mathrm{tot} = 0.276 \mathbf{\cdot} 360 = 99.2\ \mathrm{mol/min}\)


\(\dot{n}_{k}^v = \mathcal{V}_k \mathbf{\cdot} \dot{n}_\mathrm{tot} = 0.000 \mathbf{\cdot} 360 = 260.8\ \mathrm{mol/min}\)

\(\dot{n}_{k-1}^v\)

\(\dot{n}_{k+1}^l\)

\(\dot{n}_{k}^v\)

\(\dot{n}_{k}^l\)

\(T_k,\ P_k\)

Example: Distillation Raoult’s Law

An equilibrium stage in a distillation column for separating hexane from heptane and octane has a liquid feed of 45.0% hexane, 45.0% heptane, and the balance octane at 240 mol/min and a vapor product of 45.0% hexane, 45.0% heptane and the balance octane at 180 mol/min and a pressure of 1.00 bar. Determine the operating temperature of the stage and the composition of the liquid product. What additional information would you need to determine the composition of the vapor feed and the flow rates of the liquid product and the vapor feed?

Solution

The exiting streams, (the \(k\)’s) are in equilibrium. We’re given the exiting vapor composition and the pressure, so the phase calculation is a DEW T.

  1. Guess a \(T_\mathrm{guess}\).
  2. Calculate the \(p^*\)’s from the \(T\).
  3. Calculate the \(P_\mathrm{calc}\) as the reciprocal of the sum of the vapor mole fractions over the vapor pressures.
  4. Use Goal Seek to vary \(T_\mathrm{guess}\) until \(P = P_\mathrm{calc}\).
  5. Use Raoult’s law to calculate the exiting liquid composition.

Solution

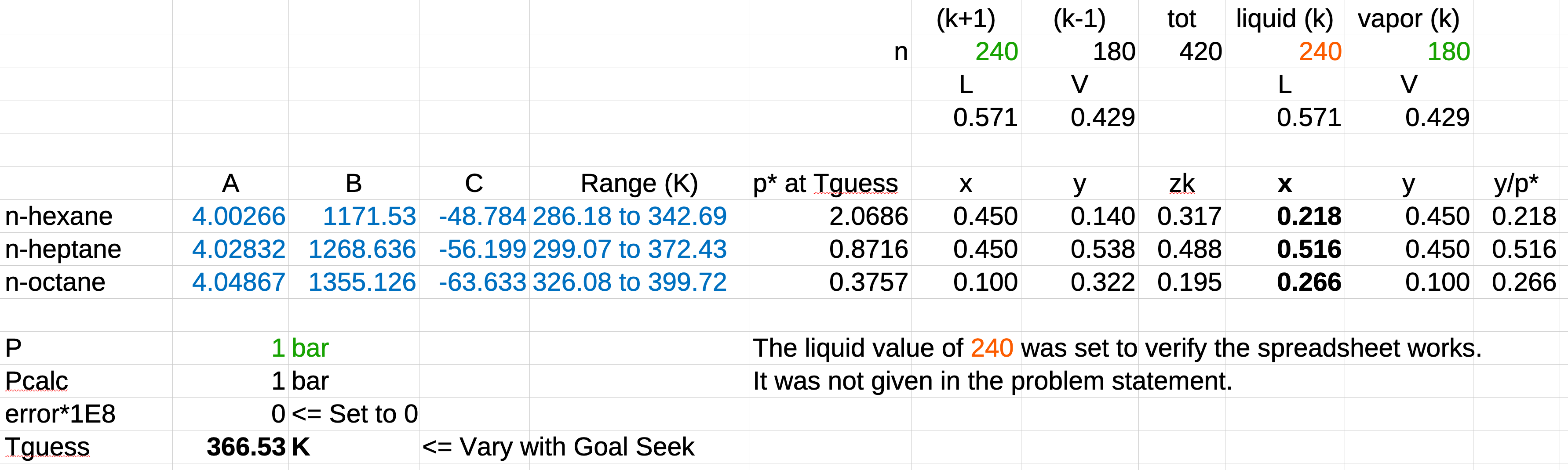

\(p_6^* = 10^{4.00266 - \frac{1171.530}{T - 48.784}},\ \ \ \ p_7^* = 10^{4.02832 - \frac{1268.636}{T - 56.199}},p_8^* = 10^{4.04867 - \frac{1355.126}{T - 63.633}}\)


\(P_\mathrm{calc} = \frac{1}{\sum\limits_{i=1}^N \dfrac{y_i}{p_i^*}} = \frac{1}{\dfrac{y_{6,k}}{p_6^*}+\dfrac{y_{7,k}}{p_7^*}+\dfrac{y_{8,k}}{p_8^*}} = \dfrac{1}{\dfrac{0.450}{p_6^*}+\dfrac{0.450}{p_7^*}+\dfrac{0.100}{p_8^*}}\)


\(x_{6,k} = \dfrac{y_{6,k}P}{p_6^*}\)


\(x_{7,k} = \dfrac{y_{7,k}P}{p_7^*}\)


\(x_{8,k} = 1 - (x_{6,k} +x_{7,k} )\)

To determine the remaining variables we need a minimum of either the total entering vapor flow or the total exiting liquid flow, \(\mathcal{L}\) or \(\mathcal{V}\), or two of \(z_{6,k},\ z_{7,k},\) or \(z_{8,k}\).


The remaining mass balances will permit us to calculate everything else. The spreadsheet was tested with the total exiting liquid flow.

The Takeaways

  1. For binary separations a binary phase diagram makes the phase-equilibrium calculation easy and quick, but not necessarily accurate.
  2. For ideal solutions Raoult’s law and the Antoine equation can be used for the phase-equilibrium calculations.

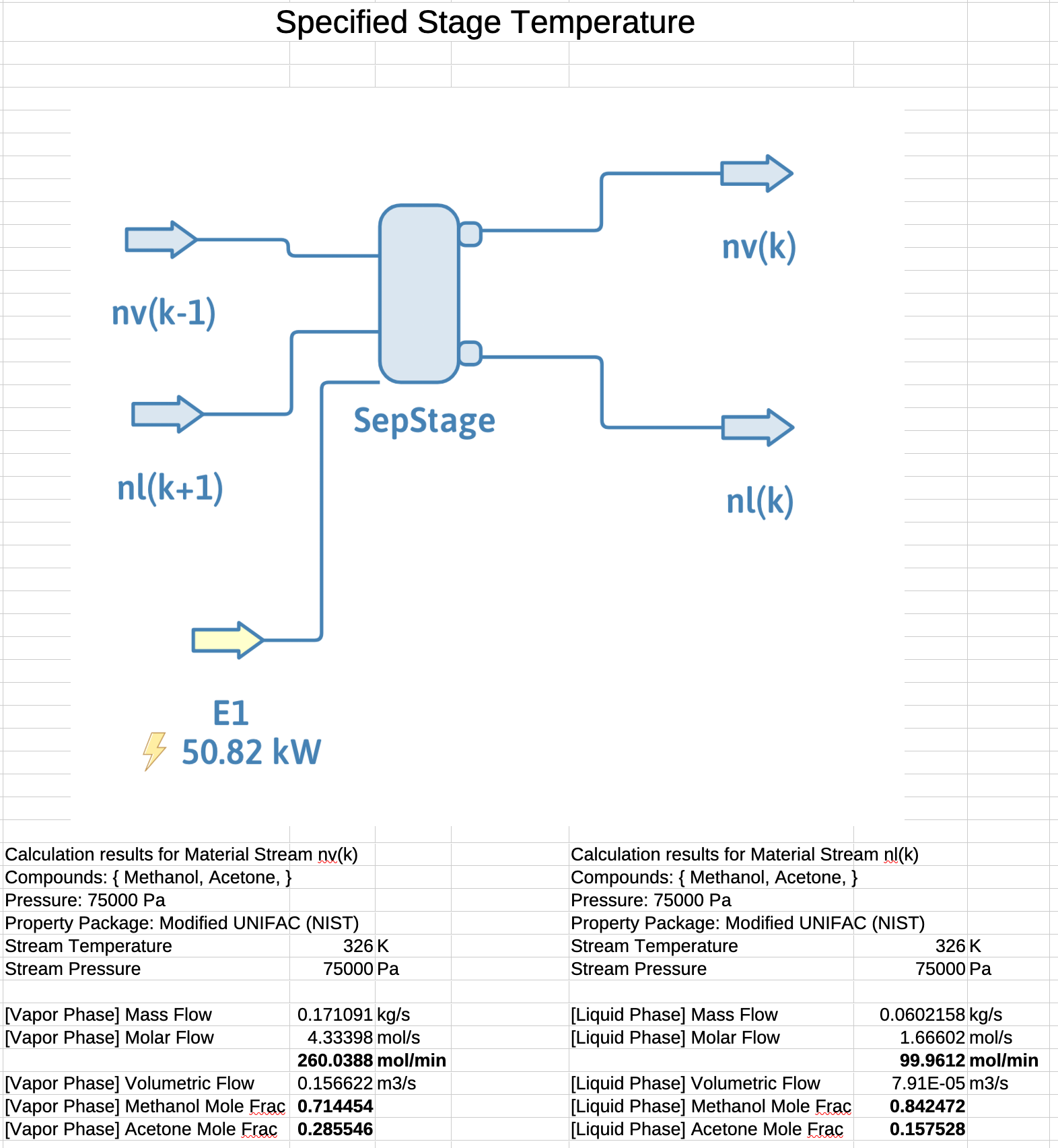

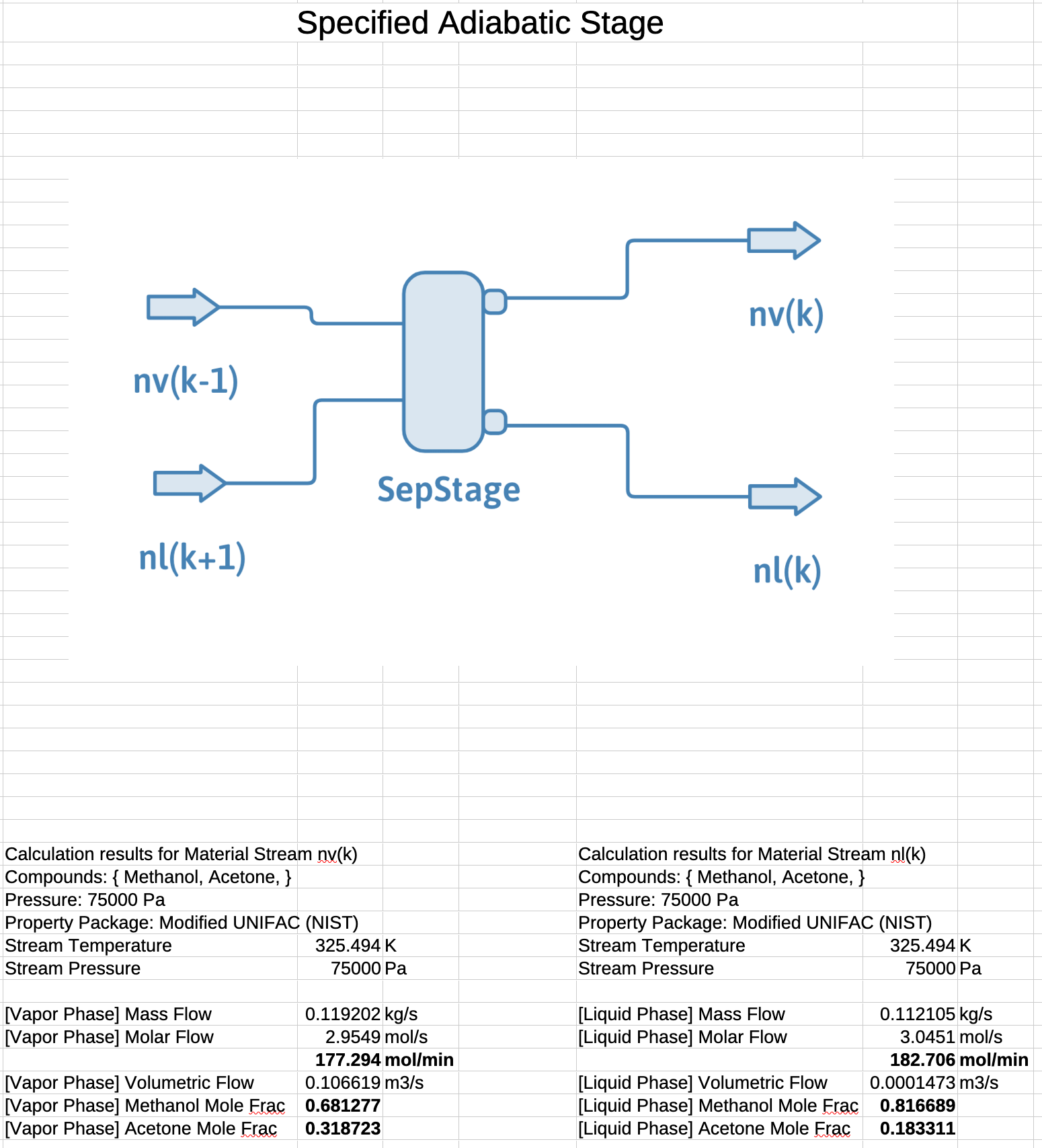

  3. Using chemical-process-flowsheet software such as DWSIM removes most of the tedium from the process, if you know what you are doing.
