Absolute, Atmospheric, and Gauge Pressure

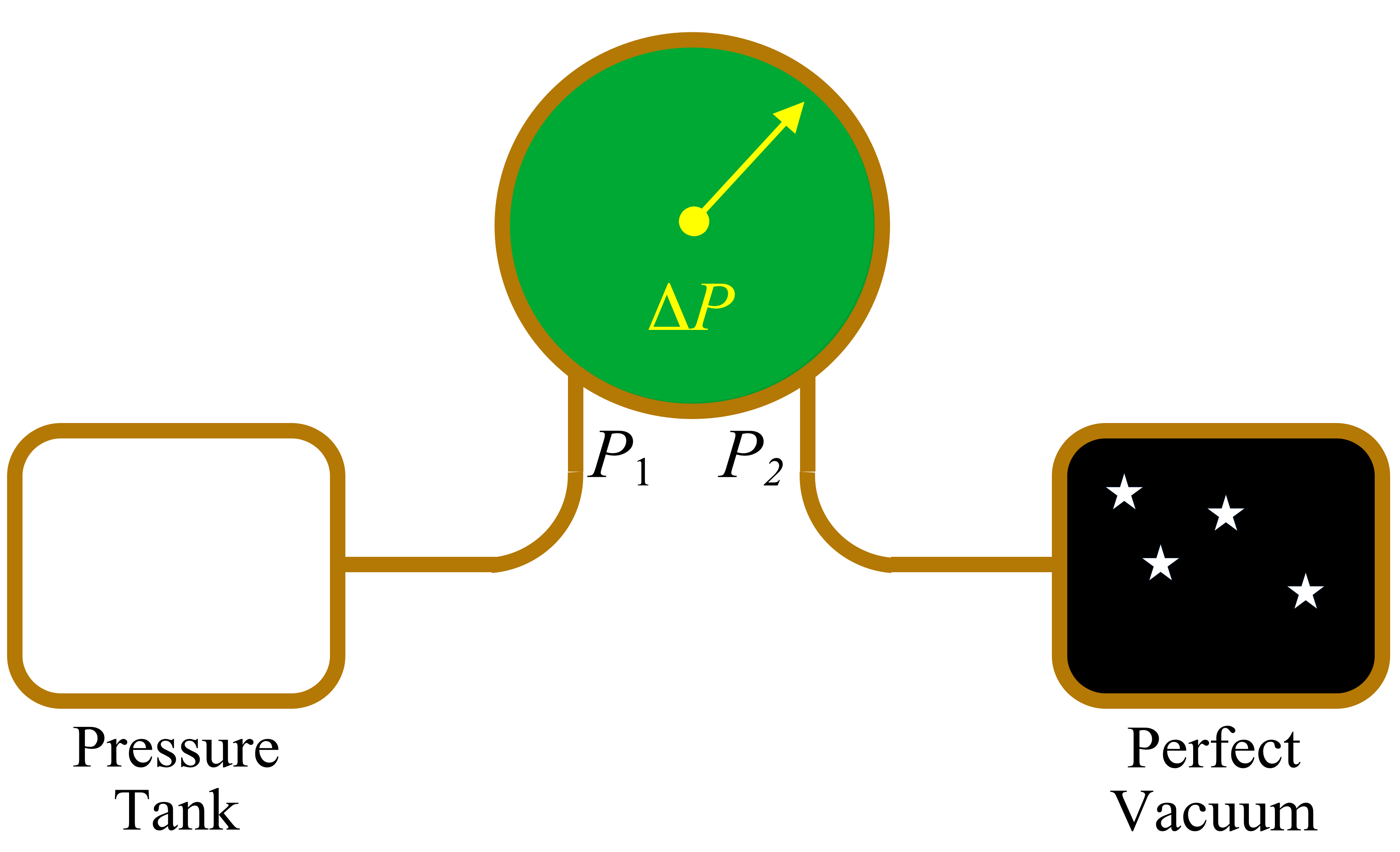

\(\Delta P = P_1 - P_2 = P_\mathrm{absolute}=P_\mathrm{abs}\)

e.g., \(30\ \mathrm{psia}\)

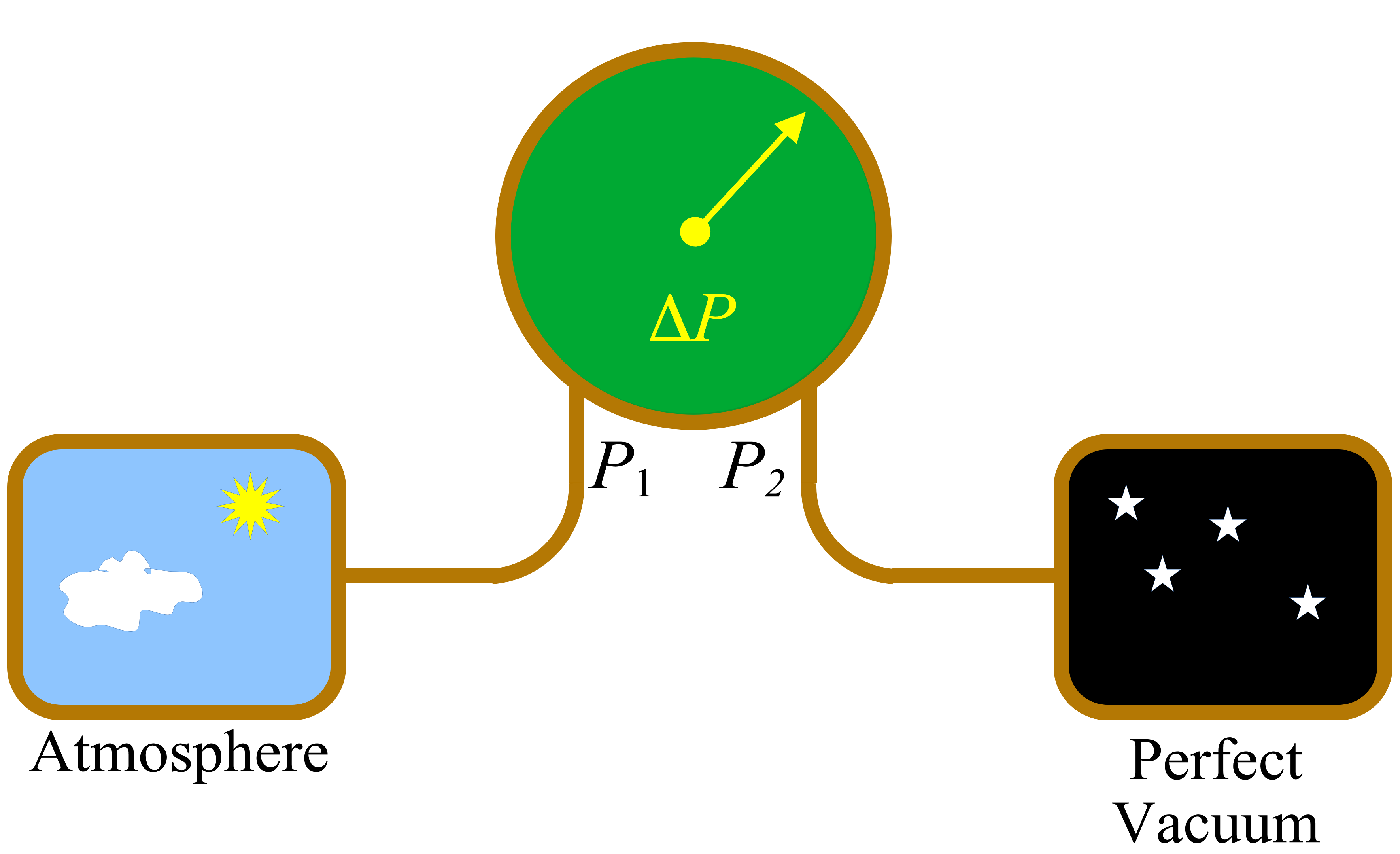

\(\Delta P = P_1 - P_2 = P_\mathrm{atmosphere}=P_\mathrm{atm}\)

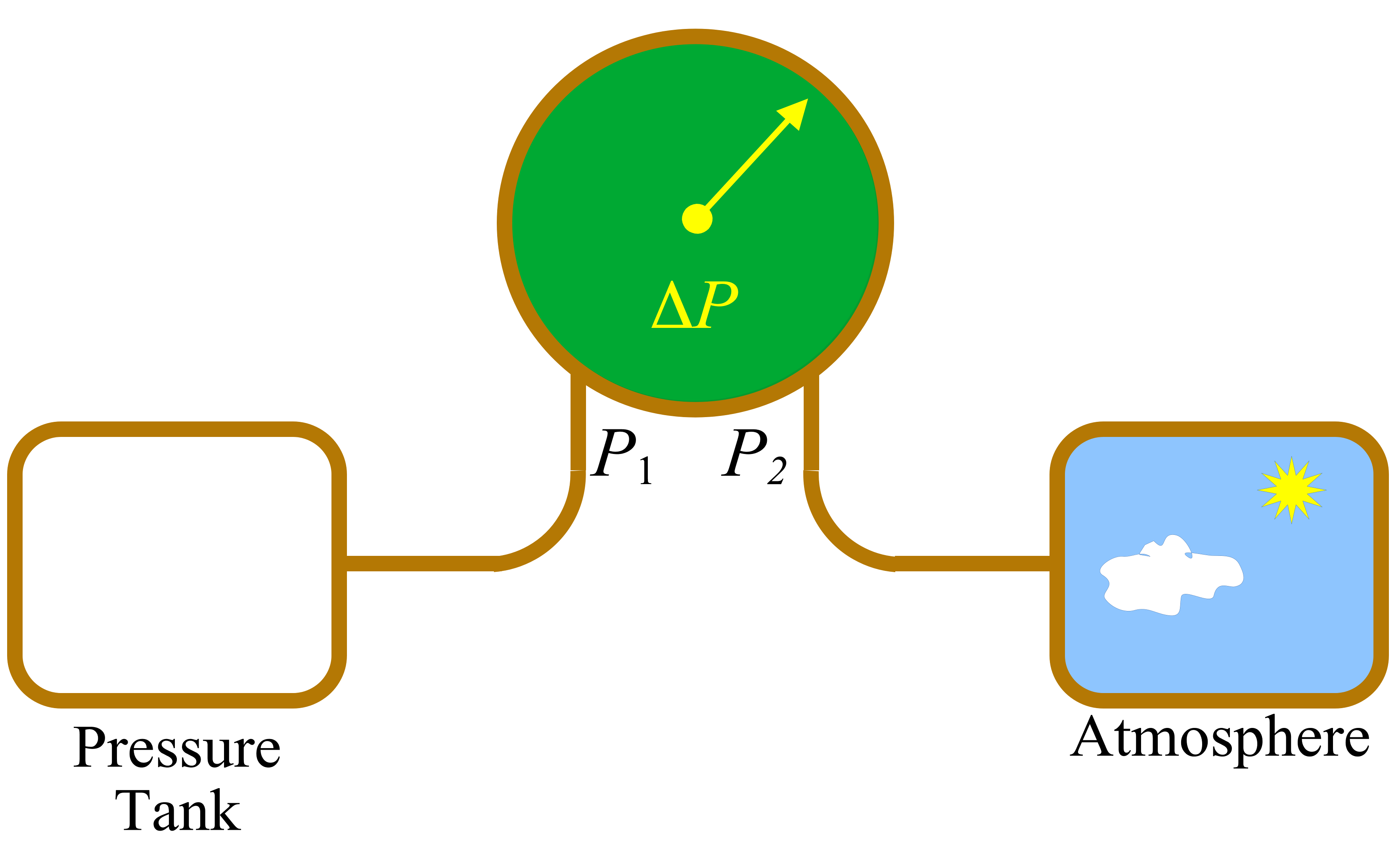

\(\Delta P = P_1 - P_2 = P_\mathrm{gauge}=P_\mathrm{g}\)

e.g., \(14.7\ \mathrm{psig}\)

Calculating Abs., Atm, Gauge Pressures

\(P_\mathrm{abs} = P_\mathrm{g}+P_\mathrm{atm}\)

\(P_\mathrm{g} = P_\mathrm{abs}-P_\mathrm{atm}\)

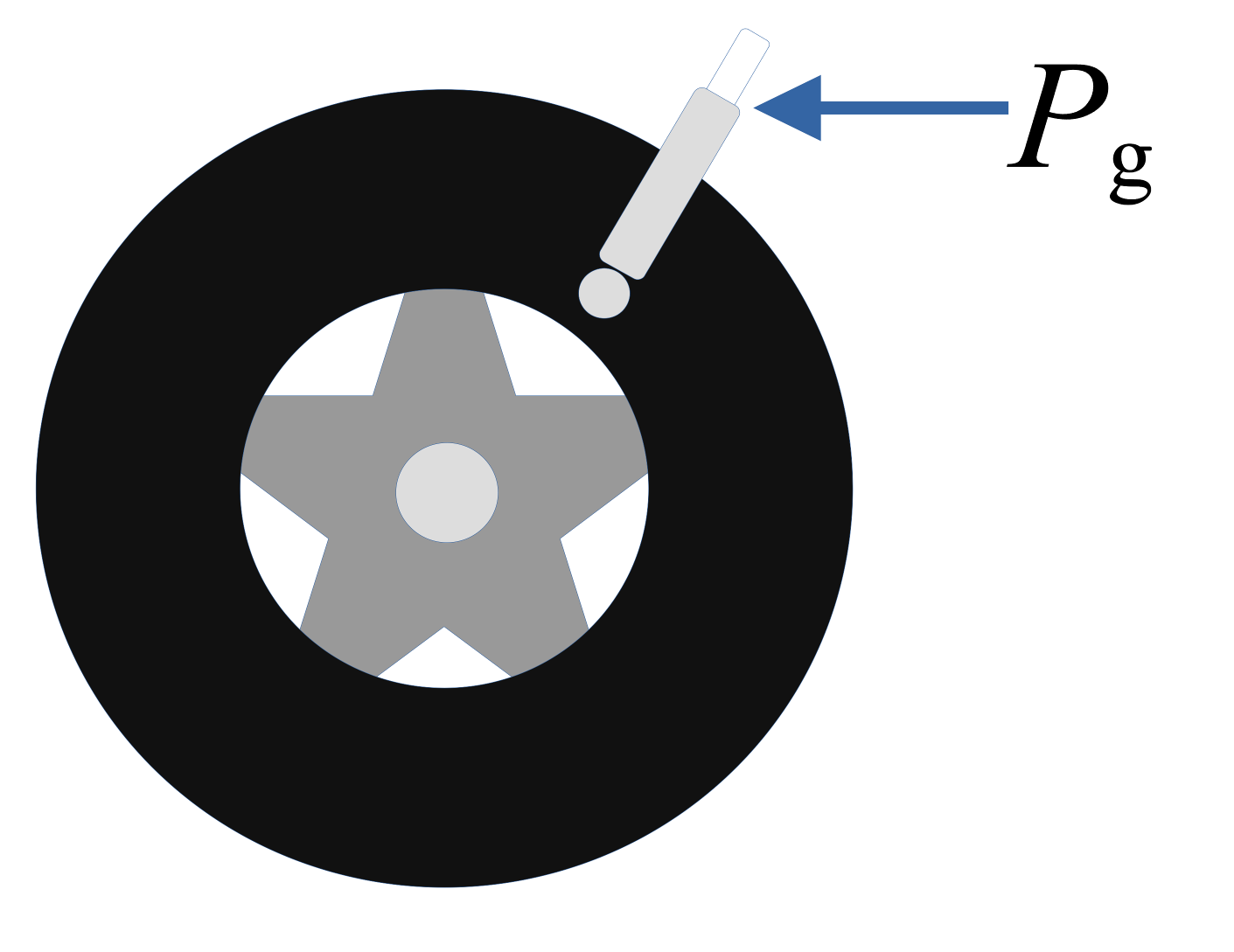

  1. Absolute tire pressure gauge
  2. Atmospheric pressure gauge
  3. Weather report and local altitude

Barometric and Atmospheric Pressure

  1. Absolute pressure gauges – Easy, Absolute tire pressure gauges – Very Hard
  2. Atmospheric pressure gauges – a decent cell phone and an air pressure app
  3. Weather report – Easy, Local altitude – Use GPS

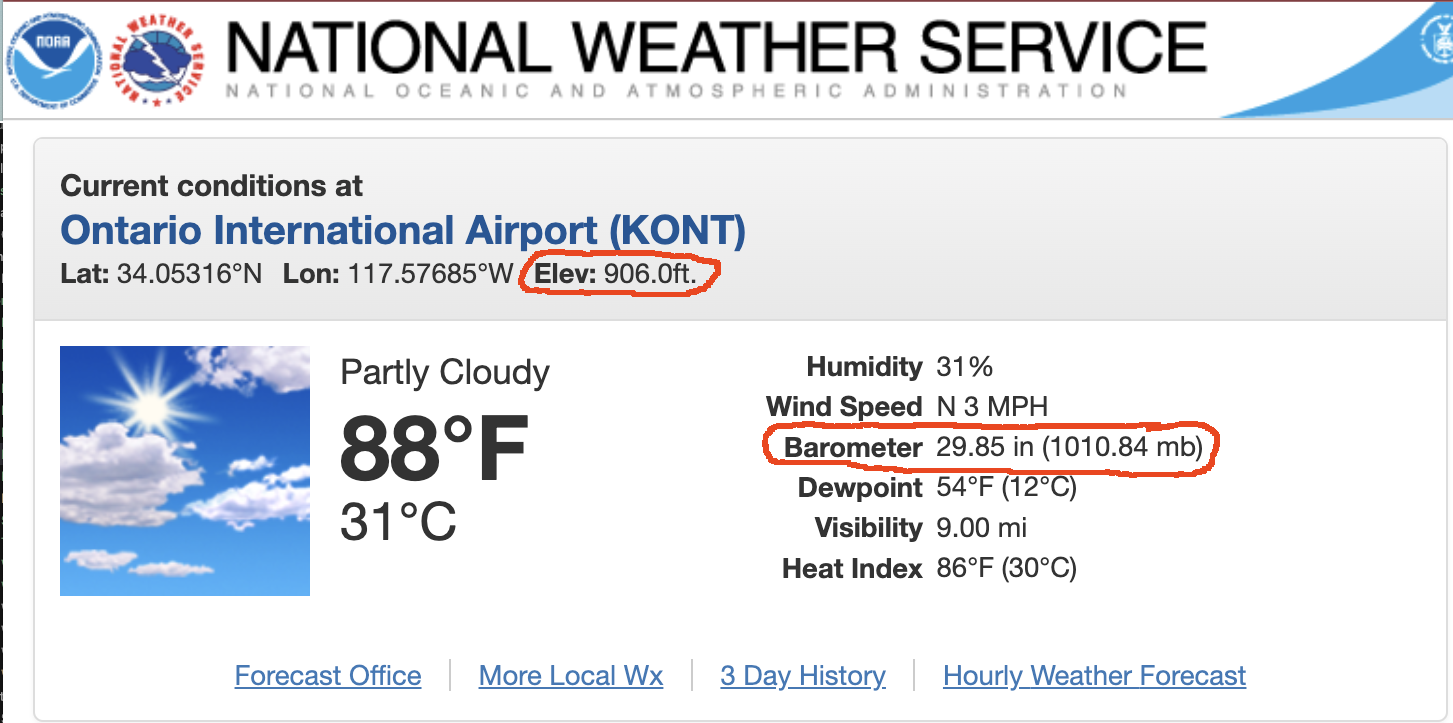

Weather report gives barometric, not atmospheric pressure.

Barometric Pressure

The barometric pressure is the local atmospheric pressure adjusted for altitude to sea level.

\[P_\mathrm{baro}=P_\mathrm{atm}(1-2.25577 \times 10^{-5}h)^{5.25588}\]

\[P_\mathrm{atm}=P_\mathrm{baro}(1-2.25577 \times 10^{-5}h)^{-5.25588}\]

with \(h\) in meters.

Example

Measure bicycle tire pressure in Claremont, CA, USA

\(P_\mathrm{baro} = 29.89\ \mathrm{inHg}\)

\(h_\mathrm{Claremont} = 1340\ \mathrm{ft}=408.4\ \mathrm{m}\)

\[\begin{aligned} P_\mathrm{atm} & =P_\mathrm{baro}(1-2.25577 \times 10^{-5}h)^{-5.25588} \\ & =29.89\ \mathrm{inHg}(1-2.25577 \times 10^{-5}\cdot408.4)^{-5.25588} \\ & = 28.47\ \mathrm{inHg}= 723.2\ \mathrm{Torr}= 13.98\ \mathrm{psia} \approx 14.0\ \mathrm{psia} \end{aligned}\]

\(P_\mathrm{g} = 36.0\ \mathrm{psig}\)

\[\begin{aligned} P_\mathrm{abs} & = P_\mathrm{g}+P_\mathrm{atm} \\ & =36.0\ \mathrm{psig}+14.0\ \mathrm{psia} = 50.0\ \mathrm{psia} =3.45\ \mathrm{bar} \end{aligned}\]

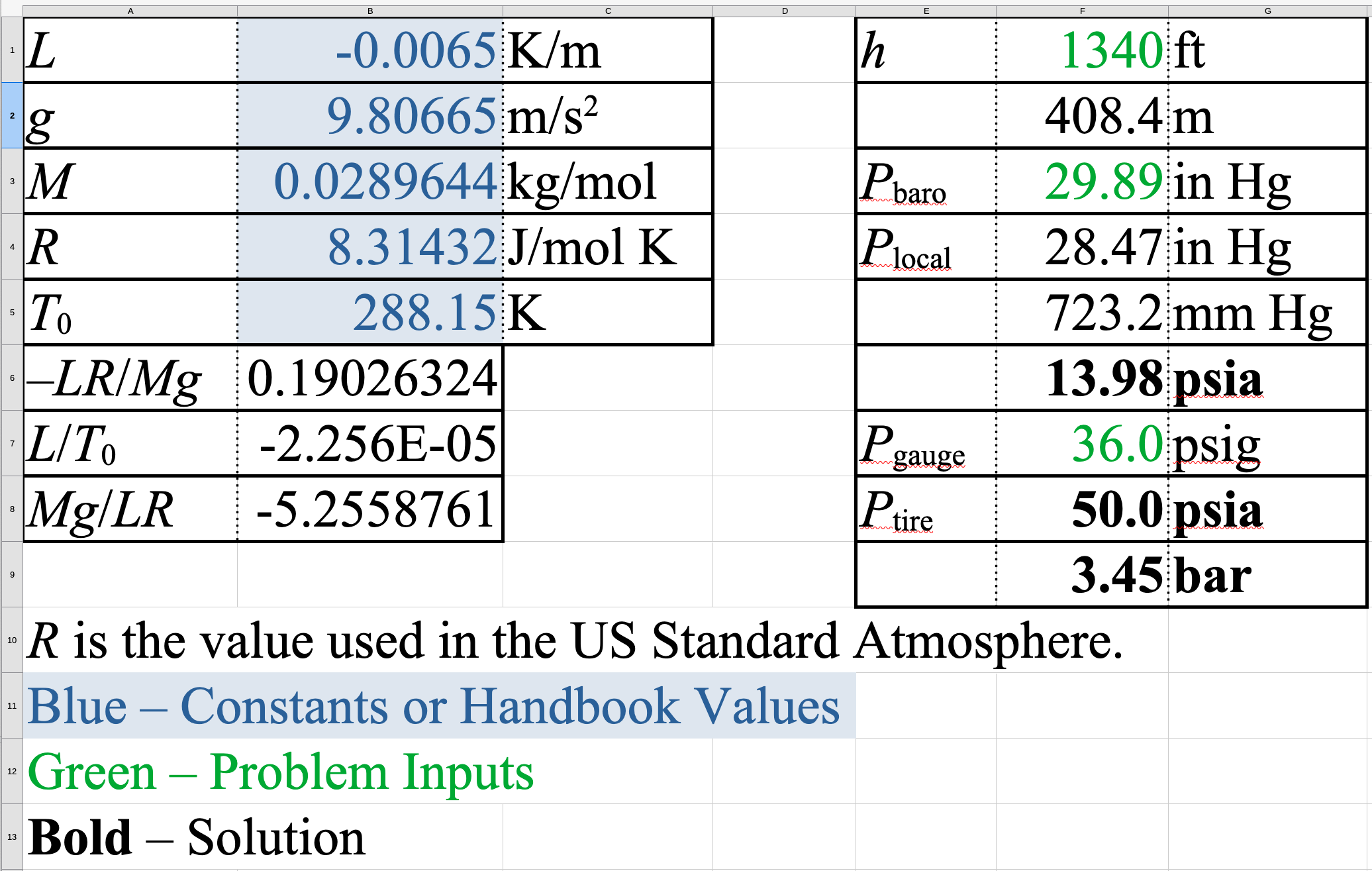

Spreadsheet

Vacuum Pressure

Background CC BY 3.0 link

  • Any pressure below local atmospheric
  • In psi it’s indicated by \(\mathrm{psiv}\).
  • Negative of gauge pressure, e.g., \(P_\mathrm{g}=-7\ \mathrm{psig} \implies P_\mathrm{v}=7\ \mathrm{psiv}\)
  • Common in vacuum distillation and other processes

High Vacuum

Background CC BY-SA 3.0 link

  • Used in advanced materials processing
  • Measured as absolute pressure
Pressure ranges
Acronym Name Max P (Pa) Min P (Pa)
HV High Vacuum \(10^{-1}\) \(10^{-5}\)
UHV Ultrahigh Vacuum \(10^{-5}\) \(10^{-10}\)
EHV Extrememly High Vacuum \(10^{-10}\) \(<10^{-10}\)

The Takeaways

  1. Absolute, gauge, and atmospheric pressure are related by \(P_\mathrm{abs} = P_\mathrm{g}+P_\mathrm{atm}\).
  2. Barometric and atmospheric pressure are related through the Standard Atmospheric Model.
  3. The vacuum pressure is the absolute value of the gauge pressure below atmospheric.
  4. The High Vacuum (HV) range is from \(10^{-1}\) to \(10^{-5}\ \mathrm{Pa}\), Ultrahigh Vacuum (UHV) from \(10^{-5}\) to \(10^{-10}\ \mathrm{Pa}\), and Extremely High Vacuum (EHV) is \(10^{-10}\ \mathrm{Pa}\) and below.
